Gira HomeServer

The on-board computer for intelligent buildings

By up­grad­ing the KNX sys­tem to in­clude the Gira HomeServer, res­id­ents will not only reap the be­ne­fits of mo­bile tech­no­logy con­trol, but will also enjoy the full Gira ex­per­i­ence with max­imum con­veni­ence, se­cur­ity and en­ergy ef­fi­ciency. The on-​board com­puter for the in­tel­li­gent build­ing con­nects the elec­trical in­stall­a­tion for the KNX sys­tem with the com­puter net­work and the in­ter­net. This makes cent­ral con­trol of smart build­ing tech­no­logy pos­sible using a large num­ber of op­er­at­ing devices, re­gard­less of where the user cur­rently is.



  • Easy control of complex systems – with the touch of finger
  • Straightforward integration of a large number of technologies such as door intercoms, cameras, audio systems and third-party systems for sanitary, kitchen and entertainment facilities
  • State-of-the-art interface available in white or black
  • Load nodes for scenes directly by URL
  • Clearly structured display of a floor plan with current lighting status, blind positions and window status information
  • Perform online tests and analyses of logics in the graphic logic editor
  • Straightforward integration of the DHCP communication protocol into the project and network settings

HomeServer updates

Regular updates of the Gira Expert start-up software and functions in the QuadClient ensure technology remains state-of-the-art, and increases convenience for users while also saving them time.

HomeServer update 4.12

  • Upgrade of the online logic test in the Expert software for an easy test of the logic in the startup phase
  • Free visualisation is supported by HTML5 technology
  • Addition of a Modbus module for the connection of PV arrays, for example.
  • Addition of a logic node for the connection of G1 functions (for example, a proximity sensor)
  • New combination DPTs (RGBW and TBW) added for Gira actuators.
  • Addition of personal backgrounds to the floor plan visualisation.

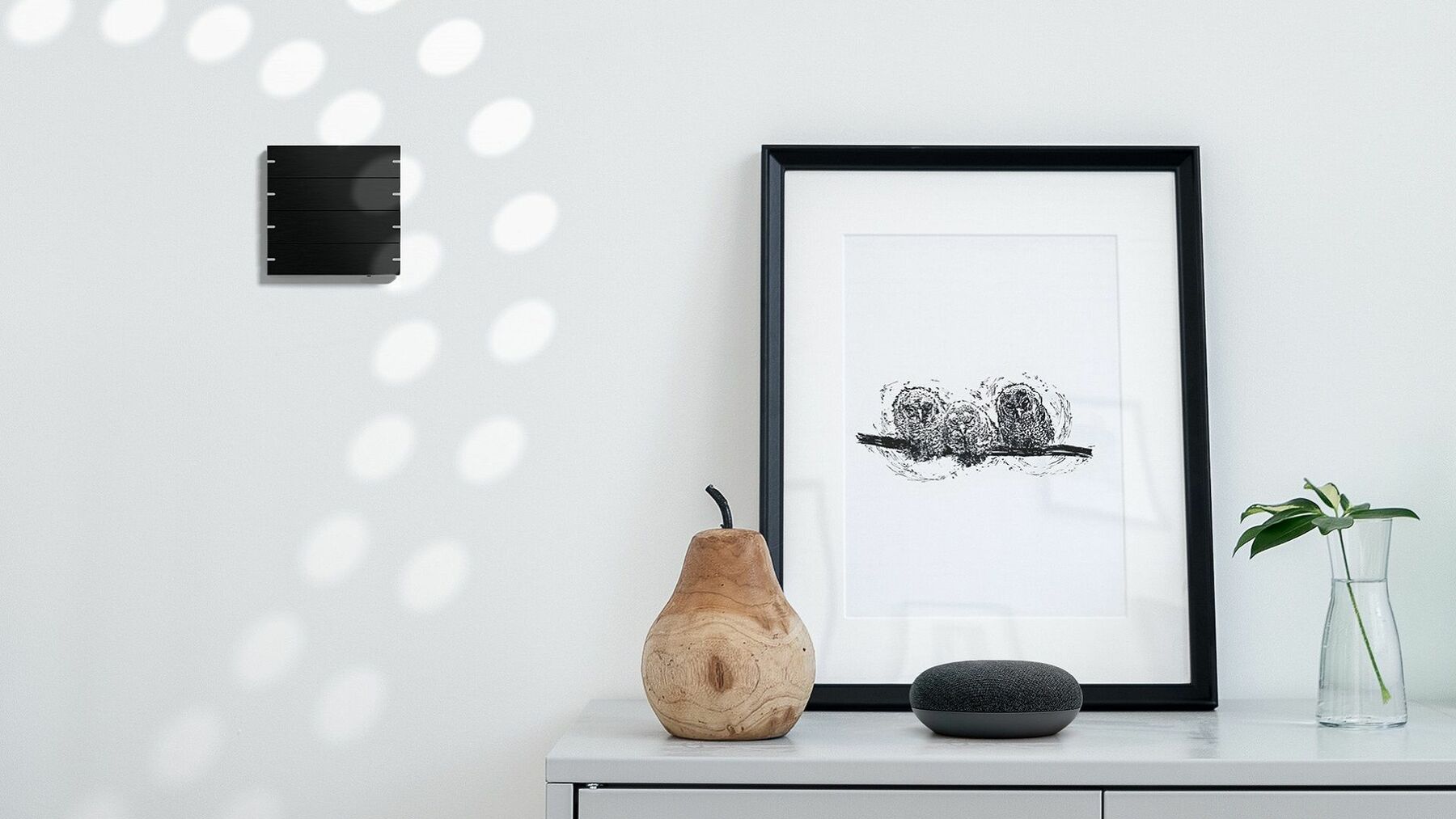

Voice control with Amazon Alexa and Google Assistant

Building functions can also be used with Amazon Alexa or Google Assistant via the Gira HomeServer using an IoT interface. To do this, simply set up the "Gira Smart Home" skill. In addition to the Gira HomeServer (from version 4.10.0), you will also need the Gira S1 for secure encryption and a corresponding device from Amazon (e.g. Amazon Echo) or Google (e.g. Google Home) for voice control. All devices must be fully set up and connected to the internet.

"Setting up Google Assistant" operating instructions
"Setting up Amazon Alexa" operating instructions

Incidentally: This skill can also be set up for the Gira X1.

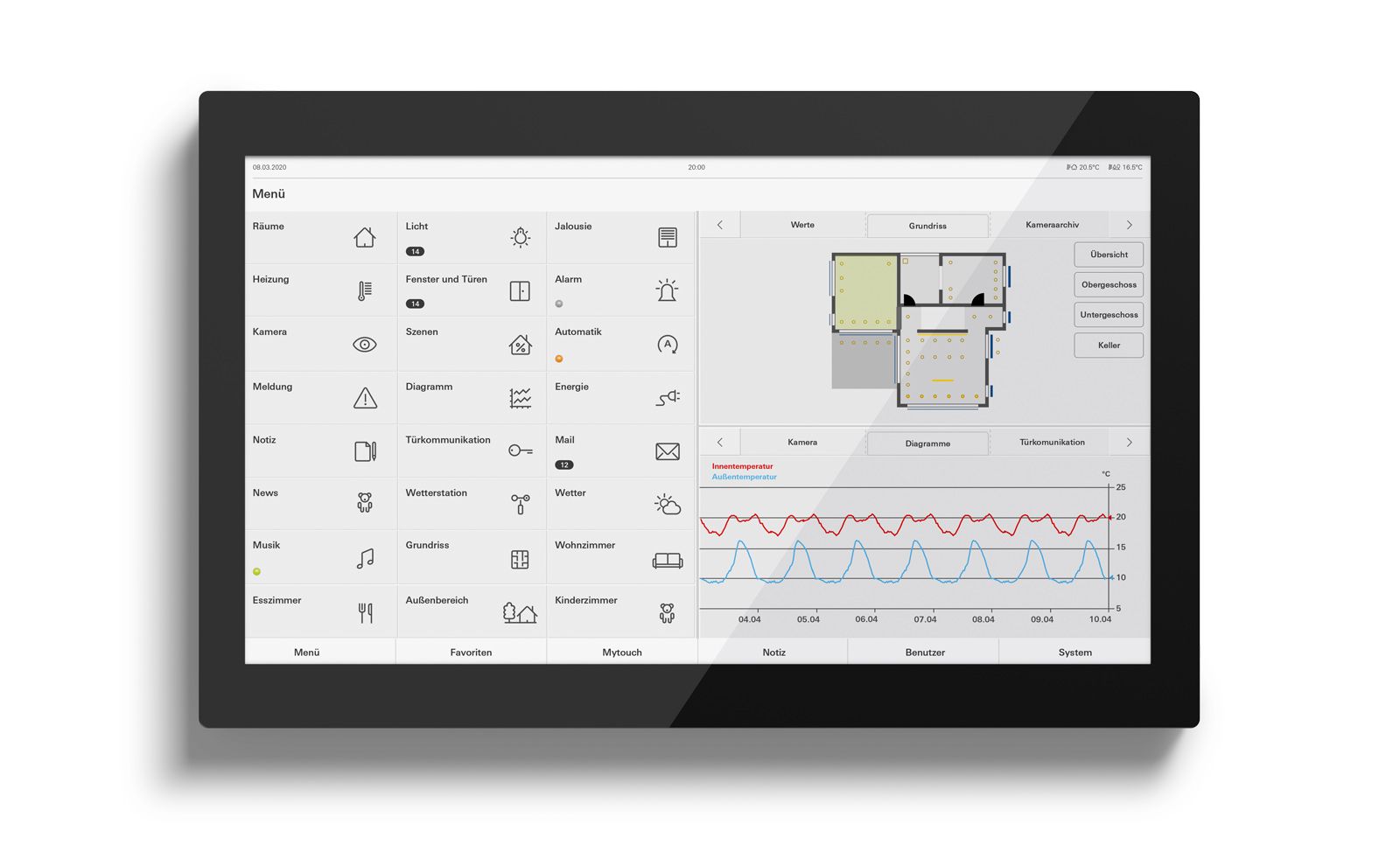

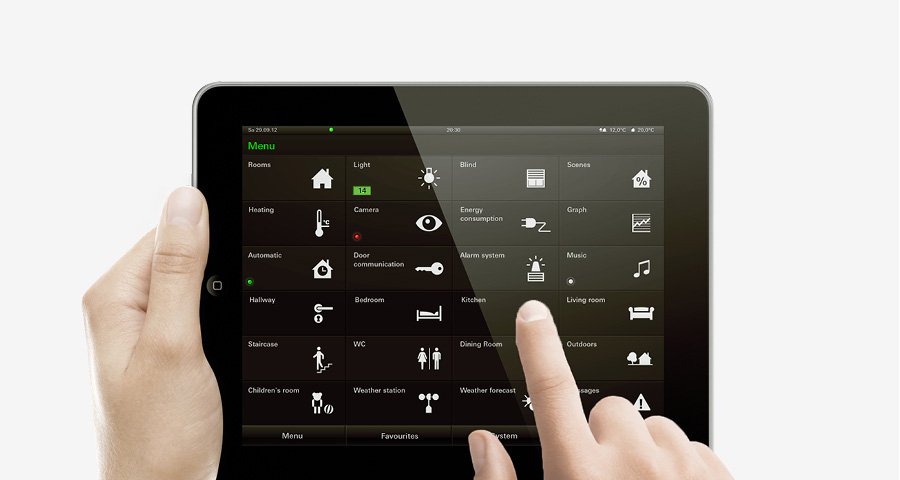

Simple operation with the Gira Interface

With the Gira In­ter­face, the user in­ter­face of the Gira HomeServer, con­trolling in­nov­at­ive build­ing tech­no­logy is child’s play. The menu nav­ig­a­tion is clearly de­signed and in­tu­it­ive. Any func­tion can be reached within only two levels. Ad­di­tional de­tailed in­form­a­tion or op­er­at­ing ele­ments are dis­played dir­ectly in a pop-​up win­dow. This al­lows very con­veni­ent op­er­a­tion via touch screen – with just one fin­ger. In ad­di­tion, all the devices that can be used to con­trol the build­ing via the Gira HomeServer/Fa­cil­ityServer pos­sess a uni­formly struc­tured in­ter­face design. As a res­ult, users won’t need to get used to a new menu nav­ig­a­tion each time – and it doesn’t mat­ter whether you’re using a Gira G1, a PC, a tab­let or a smart­phone. The user in­ter­face has been ad­ap­ted to the par­tic­u­lar screen sizes of the in­di­vidual end devices for op­timum us­ab­il­ity. The Gira HomeServer of­fers the res­id­ent a high de­gree of flex­ib­il­ity with self-​configurable if/then scen­arios in the Gira HomeServer app. This makes com­plex things easy to con­trol – any time and any­where.

More about the Gira Interface


Gira G1 Firmware-Update_EN

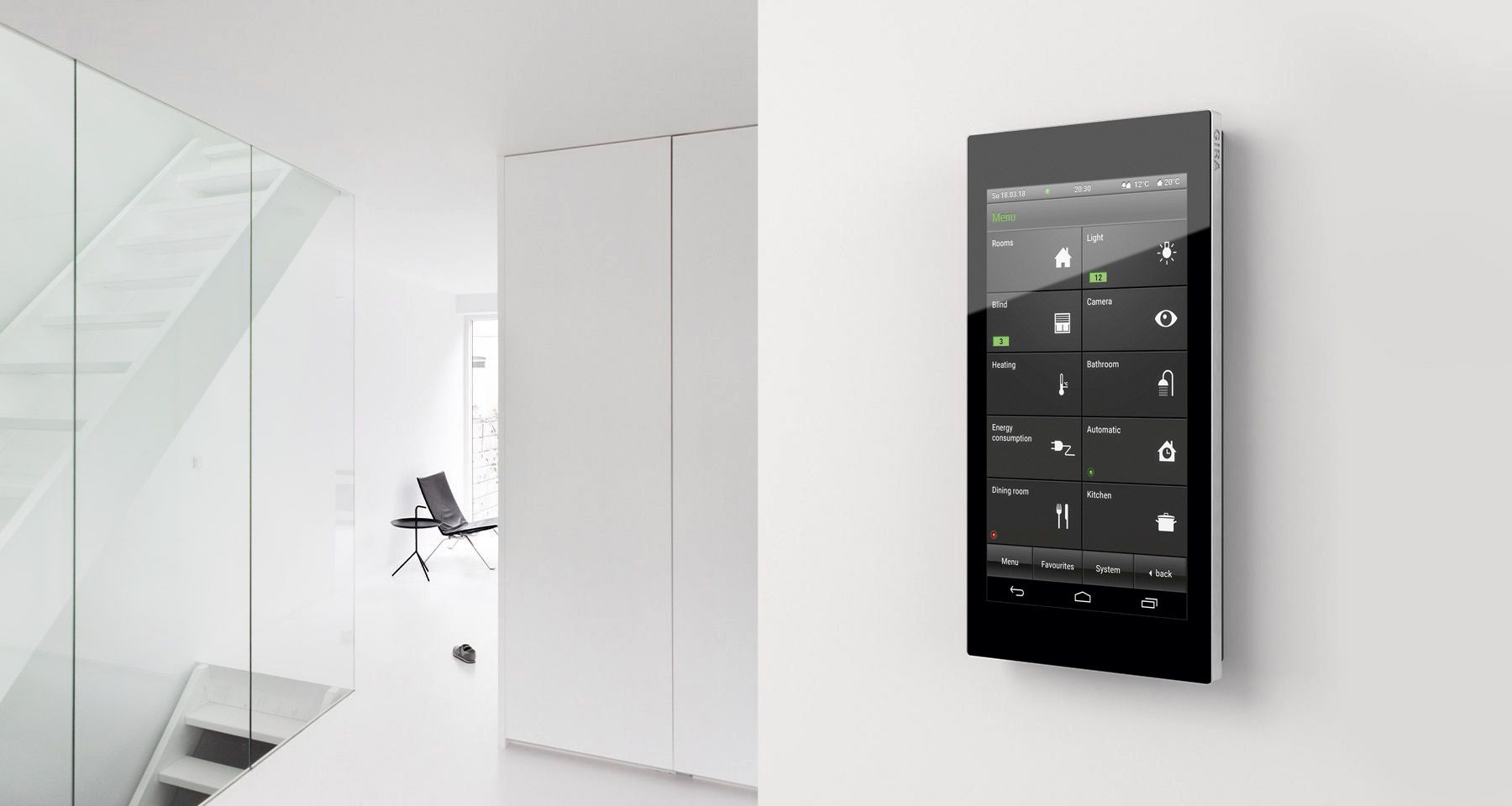

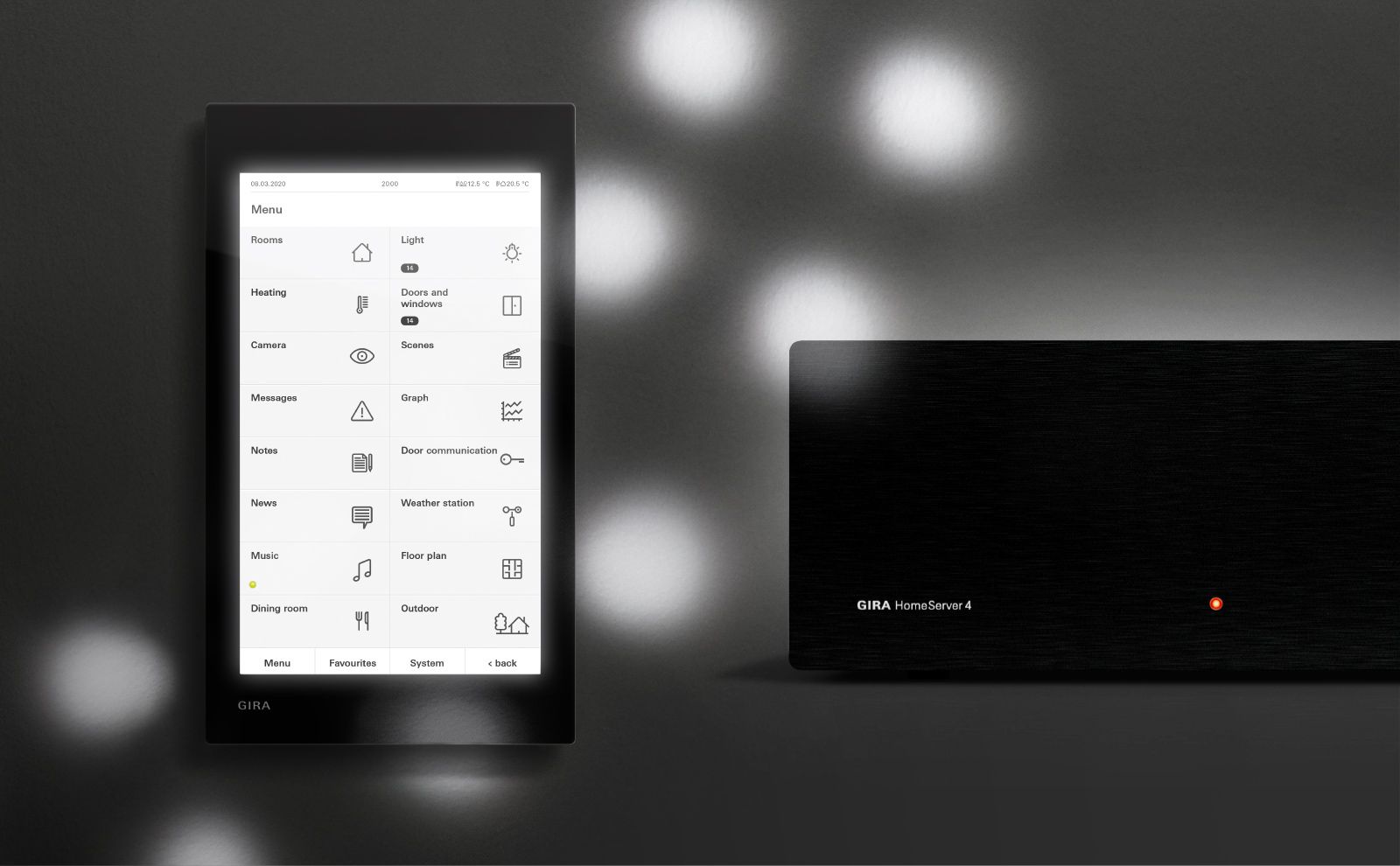

Gira G1 as a HomeServer client, release 1

In sys­tems with a Gira HomeServer, the Gira G1 can now also be used as a cli­ent. With re­lease 1, the Gira G1 dis­plays the in­ter­face design of the Gira HomeServer. Nearly all the func­tions in­cluded in the scope of series de­liv­ery of the Gira HomeServer are sup­por­ted.



More information


More convenience thanks to intelligent networking

In­tel­li­gent build­ing tech­no­logy from Gira makes liv­ing more con­veni­ent and com­fort­able – with func­tional de­tails that are pre­cisely ad­ap­ted to the in­di­vidual wishes and needs of oc­cu­pants. The cent­ral con­trol of light­ing, blinds, and heat­ing, design of room scenes, requirements-​based single-​room vent­il­a­tion and heat­ing con­trol, fully auto­matic garden sprink­lers, mul­ti­me­dia en­ter­tain­ment in all rooms, and much more. With the help of the Gira HomeServer, a wide vari­ety of func­tions can be seam­lessly in­teg­rated into the back­ground at­mo­sphere and provide a sense of well­being through­out the en­tire home.

More

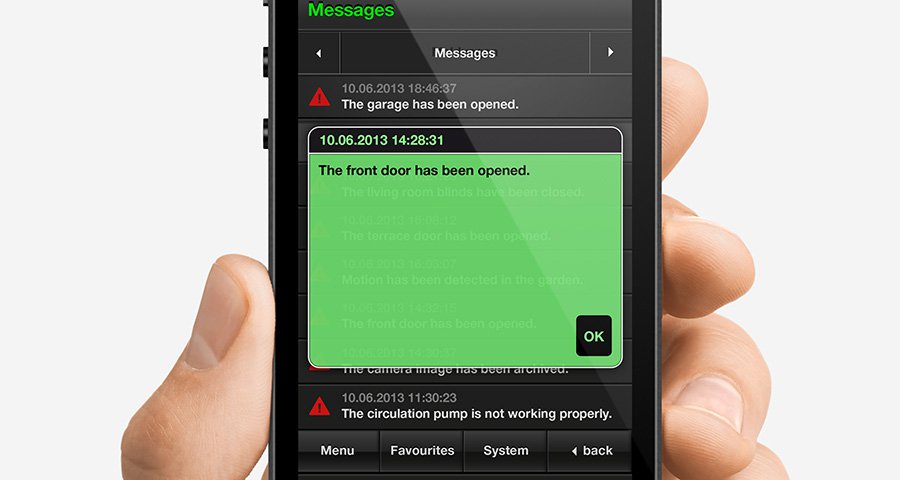

Greater security in everyday life and in dangerous situations

The di­verse se­cur­ity func­tions that can be im­ple­men­ted by being con­nec­ted to the Gira HomeServer en­sure a sense of se­cur­ity around the clock. Whether the risk is of burg­lary, fire, or storms – the Gira KNX sys­tem of­fers spe­cial solu­tions for a wide vari­ety of dangers. Spe­cial ap­plic­a­tions such as panic but­tons, video mon­it­or­ing and oc­cu­pancy sim­u­la­tions guar­an­tee op­timum pro­tec­tion for the home and its oc­cu­pants. IP cam­eras with di­gest au­then­tic­a­tion can be in­teg­rated.

More

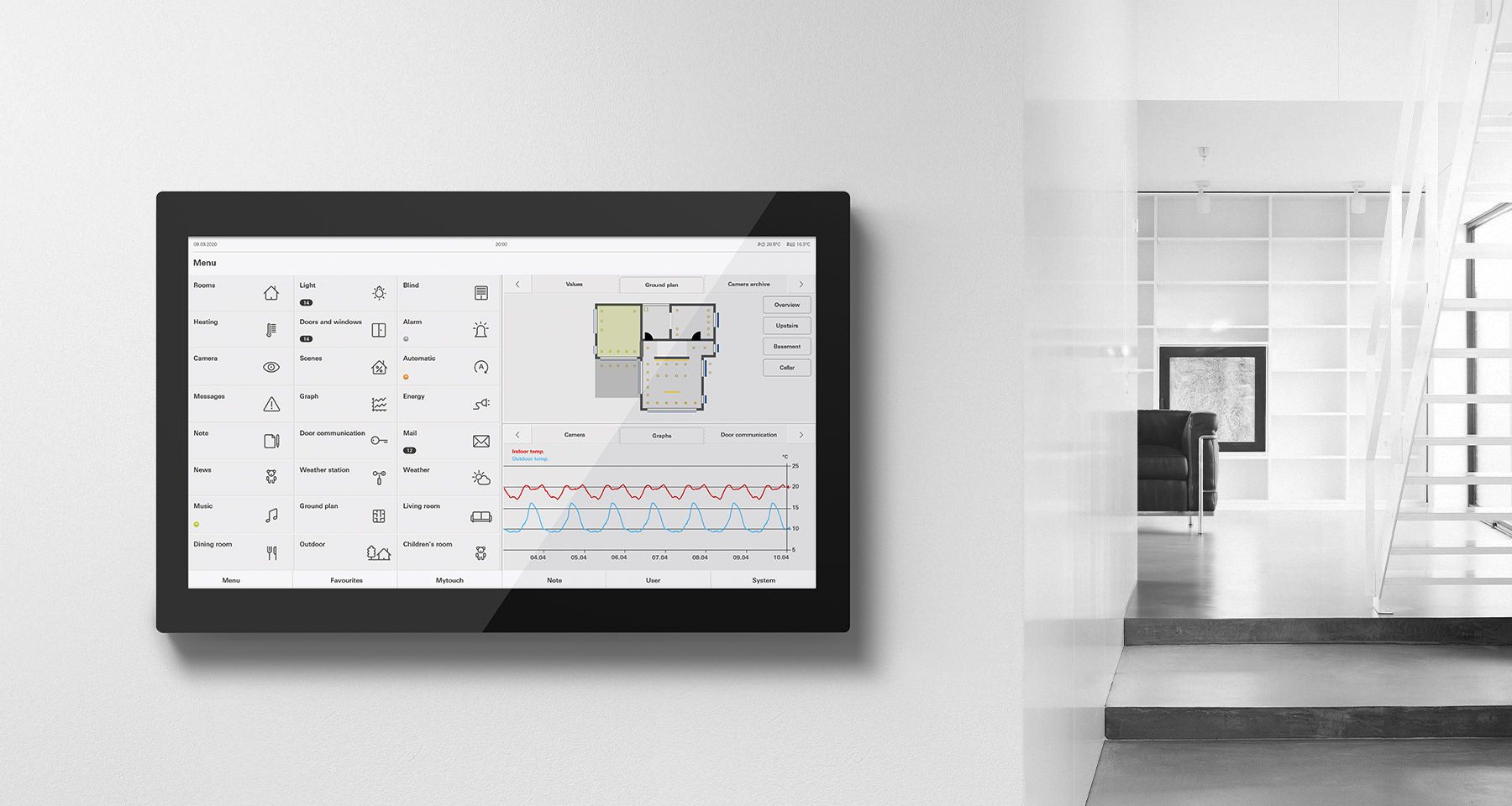

Improved energy efficiency with smart consumption control

With mod­ern en­ergy man­age­ment, in­tel­li­gent build­ing tech­no­logy from Gira not only helps to save power; it pro­tects the en­vir­on­ment too. The seam­less in­ter­ac­tion of the func­tions means en­ergy con­sump­tion is re­duced to a min­imum and co­ordin­ated ex­actly to the in­di­vidual re­quire­ments of the house­hold. The en­ergy mod­ule clearly dis­plays all the con­sump­tion val­ues at any time, mean­ing that oc­cu­pants al­ways have an eye on their en­ergy costs and can per­man­ently lower them – without cut­ting back on con­veni­ence.

More


high system flexibility through the client-server model

The ap­plic­a­tion concept of the Gira HomeServer is based on a genu­ine client-​server model. Be­cause of this, the Gira HomeServer of­fers a par­tic­u­larly high de­gree of ac­cess flex­ib­il­ity with a wide vari­ety of op­er­at­ing devices. Other tech­no­lo­gies are eas­ily in­teg­rated into the build­ing con­trol via the open IP in­ter­face.
Find out more here


Installation

Con­nec­tion op­tions: 1 serial port, 1 RJ 45 net­work con­nec­tion, 10/100 Mbit Eth­er­net. To the KNX sys­tem via IP router 2167 00, flush-​mounted USB data in­ter­face 1070 00, USB data in­ter­face DRA 2014 00. Con­nec­tion to ISDN via USB-​ISDN ad­apter 2093 00.


Start-up

Sys­tem re­quire­ments for con­trol devices: The in­ter­net browser of any op­er­at­ing device must sup­port at least HTML 4.0, Java Script 1.1, CSS and Dy­namic HTML. Start-​up with the fol­low­ing soft­ware: HomeServer Ex­pert soft­ware for op­er­at­ing sys­tems from Win­dows XP™ in­clud­ing In­ter­net Ex­plorer from ver­sion 6.0. Ad­op­tion of ETS group ad­dresses from ETS 2, ETS 3 and ETS 4. In­teg­ra­tion of graph­ics pro­grams. Up­dates can be eas­ily im­por­ted into the HomeServer via USB port.

Download

Operating instructions

Protocol specification of TCP/IP Gira Control

Operating instructions.

Bestell-Nr 2068 00, 2078 00, 2088 00, 2097 00

PDF, 145,6 KB

Download


Gira HomeServer / FacilityServer

Additional information

Bestell-Nr 0529 00, 2075 00

ZIP, 10,3 MB

Download


USB ISDN Interface

Operating instructions.

Bestell-Nr 2093 00

PDF, 25,2 KB

Download


Set up Amazon Alexa

This document describes the setup of Amazon Alexa in connection with the Gira S1 and the Gira X1 or Gira HomeServer.

Bestell-Nr 2089 00

PDF, 4,6 MB

Download


Set up Google Assistant

This document describes the setup of Google Assistant in connection with the Gira S1 and the Gira X1 or Gira HomeServer.

Bestell-Nr 2089 00

PDF, 2,2 MB

Download


Gira HomeServer / FacilityServer

Operating instructions.

Bestell-Nr 0529 00, 2075 00

PDF, 2,2 MB

Download

The following files are not available in the language you have selected, but may be in other translations.

Gira HomeServer / FacilityServer - App

Gebrauchsanleitung.

Bestell-Nr 0529 00, 2075 00

PDF, 465,9 KB

Download

Installation instructions

Wall mount for Gira HomeServer 4

Mounting manual.

Bestell-Nr 2098 00

PDF, 48,9 KB

Download

Brochures

Gira Smart Home

Bestell-Nr 18124 90

PDF, 2,0 MB

Download

Software

Gira Control Point

UPnP plug-in for the controlling of Loewe and Revox devices.

Bestell-Nr 0529 00, 2075 00

ZIP, 2,1 MB

Download


Gira Expert

Software for the Gira HomeServer 4 or Gira FacilityServer 4.

Bestell-Nr 0529 00, 2075 00

ZIP, 500,4 MB

Download


Gira HomeServer / Gira FacilityServer – Firmware

Attention! Only for Gira HomeServer 4 or Gira FacilityServer 4.

Bestell-Nr 0529 00, 2075 00

ZIP, 15,0 MB

Download


QuadClient Starter

Bestell-Nr 0529 00, 2075 00

ZIP, 1,1 MB

Download

The following files are not available in the language you have selected, but may be in other translations.

Gira OS Connect

Software zur Anbindung von Apple-Produkten an den Gira HomeServer/FacilityServer.

Bestell-Nr 0529 00, 2075 00

ZIP, 2,4 MB

Download


Gira HomeServer / Gira FacilityServer – Firmware

Mit dieser Datei können Sie die Firmware vom Gira HomeServer/FacilityServer auf die Version 4.6.0 via USB-Stick downgraden. Die Datei kann ab den folgenden Indexständen verwendet werden: - HomeServer: Indexstand I21 - FacilityServer: Indexstand I17 Bitte beachten Sie die Informationen in der ZIP-Datei.

Bestell-Nr 0529 00, 2075 00

ZIP, 22,4 MB

Download
