Gira X1

The standard in the KNX Smart Home.

Switching lights on and off, moving blinds up and down, simulating presence, setting a pleasant temperature – anywhere in the building or remotely: the Gira X1 server makes automating and visualising a single-family homes, and in expanded form, even large apartment buildings, with a KNX system easier, more convenient and more economical than ever before. For users and residents this means greater convenience and security. Many functions can be monitored and controlled remotely when away from home. The space-saving, quick installation of the Gira X1 and the minimal effort needed for start-up and configuration with the free Gira Project Assistant (GPA) make the decision to opt for Smart Home technology much easier.

Simple start-up with the Gira Project Assistant (GPA)
Central control of lighting, blinds, heating, temperature control, media and IP cameras
Solve automation tasks with the GPA logic editor
Secure remote maintenance of the Gira X1 and the KNX system via the Gira S1
Presence simulation and scene storage

Connect to Alexa, Google Assistant, Sonos and Philips Hue
Simple, intuitive and data-secure operation via the Gira Smart Home App in combination with the Gira S1
Simple integration of the tado° wireless heating thermostat into the existing KNX system
Functionality can be expanded with software packages from the Gira App Shop

Online catalogue

Downloads

Training

App store

Gira X1 server – new update available.

The new update for the Gira X1 includes several useful new functions:

If a password is lost, TLS encryption for web queries from the X1 logic allows access to the Gira X1 server using the Gira Smart Home App and administrator rights
Activation of SD card functionality for developers of Gira X1 logic nodes
Property managers can define individual user names and passwords for new tenants

Extended API, particularly useful for large housing companies: whenever tenants change, simply reset the Gira X1 server to the status when the outgoing tenant first moved in, and also reset the Gira G1 to its default settings (ring tone, ring volume and voice volume).
Advantages for specialist electricians: fewer time-consuming and unprofitable visits to customers.

Gira X1 for larger projects.

The standard version of the compact Gira X1 server offers 250 functions and 1,000 data points – making it the perfect choice for a single-family home. With two fee-based software expansion packages available in the Gira App Shop, the Gira X1 server can also be used for larger and more extensive projects. If particular flexibility is required, it can be expanded to a maximum of 625 functions and 2,500 group address data points by purchasing both packages.

Gira X1 release with Modbus TCP/IP logic node

The most recent software update introduced a range of features for the Gira X1, including a Modbus TCP/IP interface as logic node. It allows PV systems, battery storage systems and heat pumps to be integrated into the KNX system, in addition to heating systems and charging stations. This opens the door for customers to integrate energy management solutions into their KNX-based Smart Home.

Mobile operation using the Gira Smart Home App.

New functions of the Gira Smart Home App for the Gira X1 server are constantly added for easy, intuitive and comprehensive operation of the KNX system. Users can thus customise their systems by themselves in the app and even save entire scenes. This means that there is no need for electrical specialists to carry out the adjustments, which not only saves time, but also allows them to focus on other projects.

Various components integrated in the Gira X1, such as compatible photovoltaic systems, battery storage systems and heat pumps or heating systems, in addition to charging stations and energy meters.
Programming and a combination of synchronized logics

Data readouts in the Gira Smart Home App or Gira G1
Error messages sent as push notifications to the Gira G1 in conjunction with the Gira S1

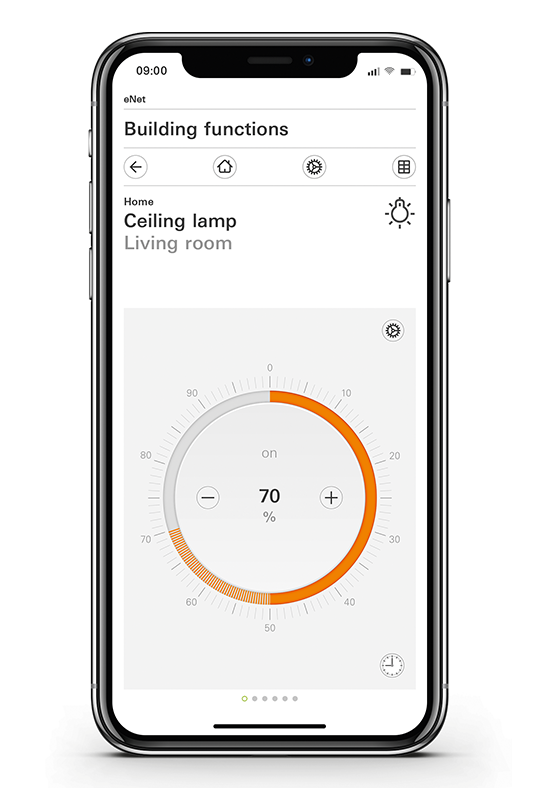

Lighting control

Switch lights on and off, or dim them precisely to the desired setting: with the Gira Smart Home App, lighting can be controlled with maximum flexibility. Several switch and dimmer templates are available for different requirements.

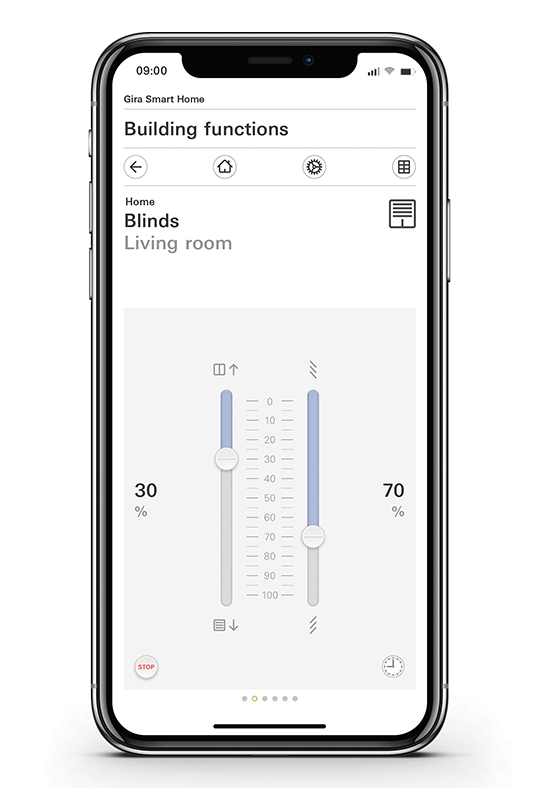

Blind controller

Raising or lowering blinds or roller shutters, precisely positioning them at a predefined height, and moving slats into the desired position: users have everything under control with a mobile device – even when away from home.

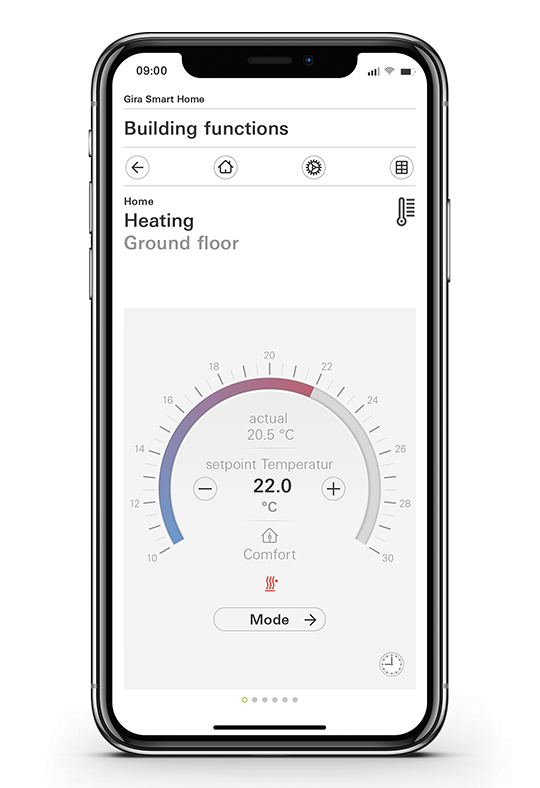

Heating and air conditioning

The app can be used to control room temperature when combined with an appropriate KNX sensor. Desired temperatures can be called up using various operating modes such as Comfort or Night.

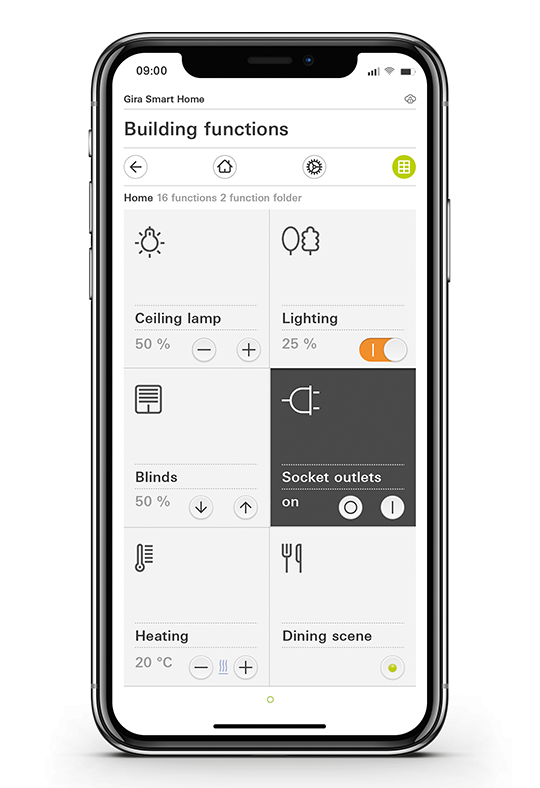

Functional overview

All of a building’s functions are displayed as tiles in the Gira Smart Home App. Central functions such as switching devices on and off, adjusting the temperature or dimming in fixed intervals can be performed directly within this view.

Calling up scenes

A perfect room ambience includes the right light, the ideal temperature and an appropriate privacy protection. The app allows the desired mood to be called up directly on a mobile device at the touch of a finger. End customers with admin rights can now create a scene themselves and add further scene variations to it. The electrician can also assign the scene created by the end customer to a button in the building.

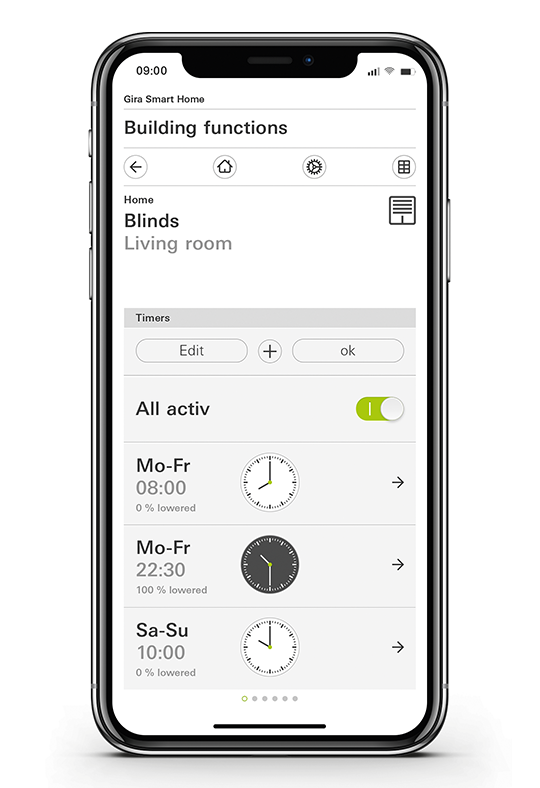

Timers

Many functions can also be controlled via a timer. This allows certain functions to be triggered automatically every day or only on certain days of the week at a specified time. For example, the blinds can be automatically raised every morning and lowered again in the evening, or the heating automatically switched to night mode.

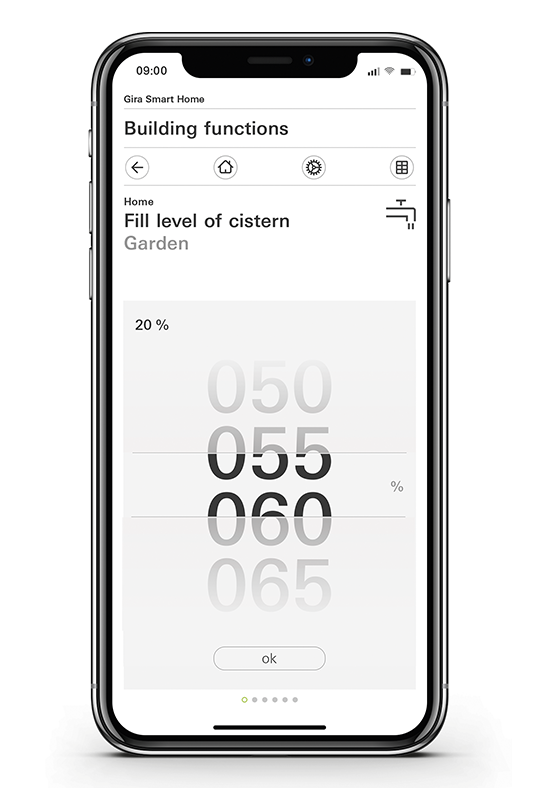

Value transmitter

Predefined settings control the blinds or heating: the value transmitter sends the values to the KNX system; the external devices can then evaluate them and perform the corresponding functions.

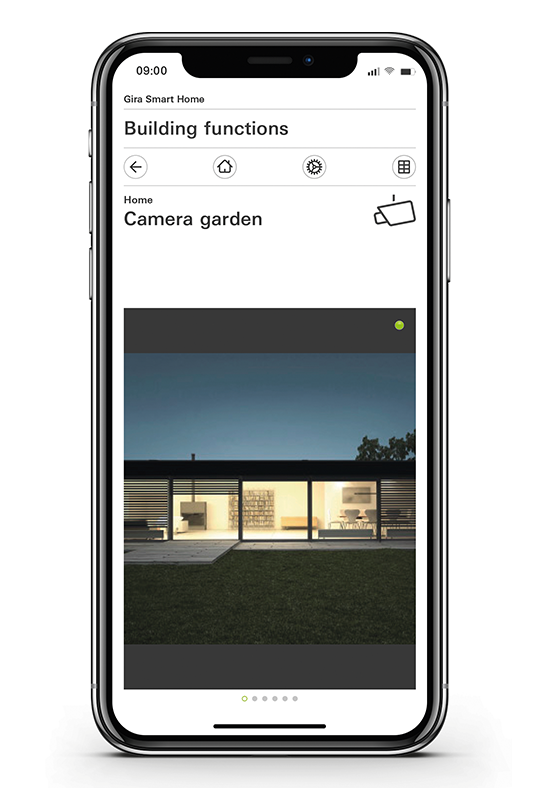

Camera monitoring

Be aware what’s happening at home – even when you’re away: the Gira Smart Home App can also transmit and display video images from IP cameras, for example. Perfect for that extra peace of mind.

Selecting a light colour

Select the appropriate light colour for each event and save your favourite colours. The colour selection of the X1 supports RGB and RGBW values. There is also another function for setting the colour temperature.

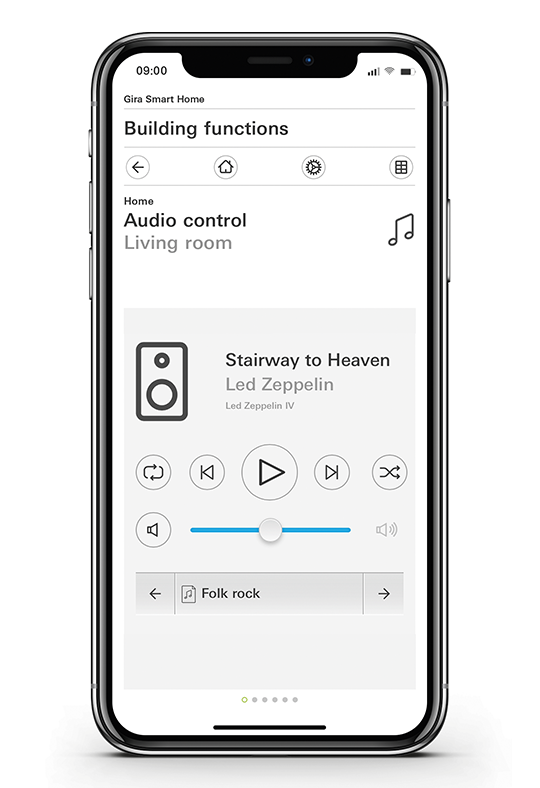

Controlling music

The Smart Home app allows you to control hi-fi systems via KNX. The main audio functions can be accessed directly from the app. These include: play/pause track, change volume, mute, switch between tracks, display track, artist, album and playlist, as well as switching between playlists.

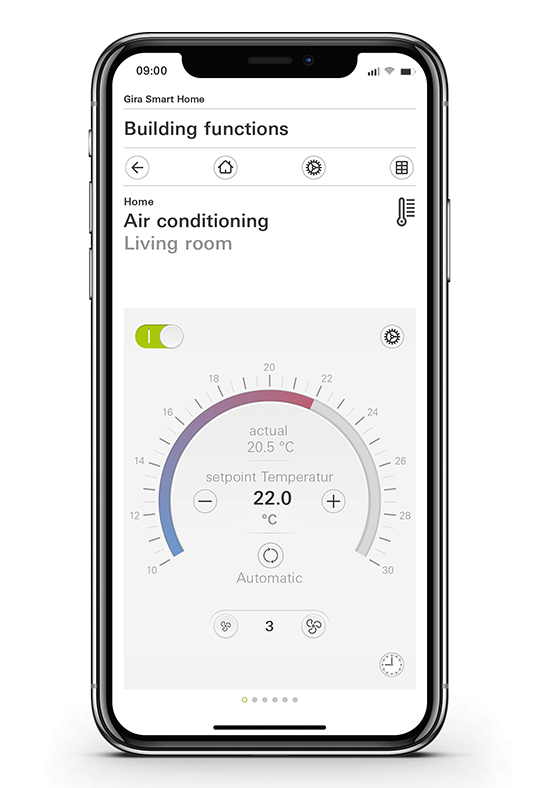

The perfect indoor climate

With the “Air conditioning” function, it is possible to control an air conditioning system using the Gira X1. This enables you to switch between the different operating modes and setting the desired temperature, the level of ventilation, and direction of the air flow.

Assignment of subsystems

Functions performed in the Gira Smart Home App can now be assigned to a subsystem and thus appear directly in the subsystem overview. This was previously only possible in the GPA.

Integrating IoT switches

Users can now integrate IoT switches themselves, for example in order to integrate third-party devices into the Smart Home App.

Parameters

End customers can, for example, customise feedback texts or change individual settings, such as the colour wheel of a function.

Clocks

With the new app update, all clocks can be adjusted or created from scratch. All time settings are visible at a glance.

Voice control with Amazon Alexa and Google Assistant.

Building functions can also be operated using Amazon Alexa or Google Assistant via the Gira X1 server with an IoT interface. In addition to the Gira X1 (from version 2.4), the Gira S1 for secure data transmission and a voice control device must be installed.

How to set up Google Assistant
How to set up Amazon Alexa

Incidentally: this function can also be set up for the Gira HomeServer.

Wireless heating control with the Gira X1 server and tado°

A logic node in the Gira X1 server enables easy connection of smart tado° wireless thermostats, which means the KNX system can be expanded to include smart heating control with a geofencing function without requiring additional cabling or replacement of radiators. Fast, future-proof and energy-conscious, it can also be easily retrofitted.

Find out more

Simple start-up of the Gira X1 server using the Gira Project Assistant.

Starting with version 5.0, the free Gira Project Assistant (GPA) enables simple, intuitive start-up of the Gira X1 server – even remotely via internet and the Gira S1 remote access module. Clear visualisations, self-explanatory step-by-step instructions, learning videos and configuration via drag and drop save a lot of time and training. The KNX system can also be configured using ETS and the Gira X1 as a KNX interface.

More information on the Gira Project Assistant

System graphics: Gira X1 server in the network

Networking your building technology.

Smart networking and integration of the Gira X1 via KNX requires a cable, which is generally laid together with the power supply in new builds. The system components communicate with each other on this cable via KNX protocol and functions such as lighting, blinds, heating, ventilation, and security technology can be easily centrally controlled and automated.

Find out more about KNX

Secure encryption thanks to Gira S1.

Thanks to encrypted communication, the S1 allows users to connect to their KNX Smart Home easily and absolutely securely, wherever they are. They can switch off the lights, check camera images, switch on the heating or close the blinds while away from home – with all data secure.

Learn more about the Gira S1

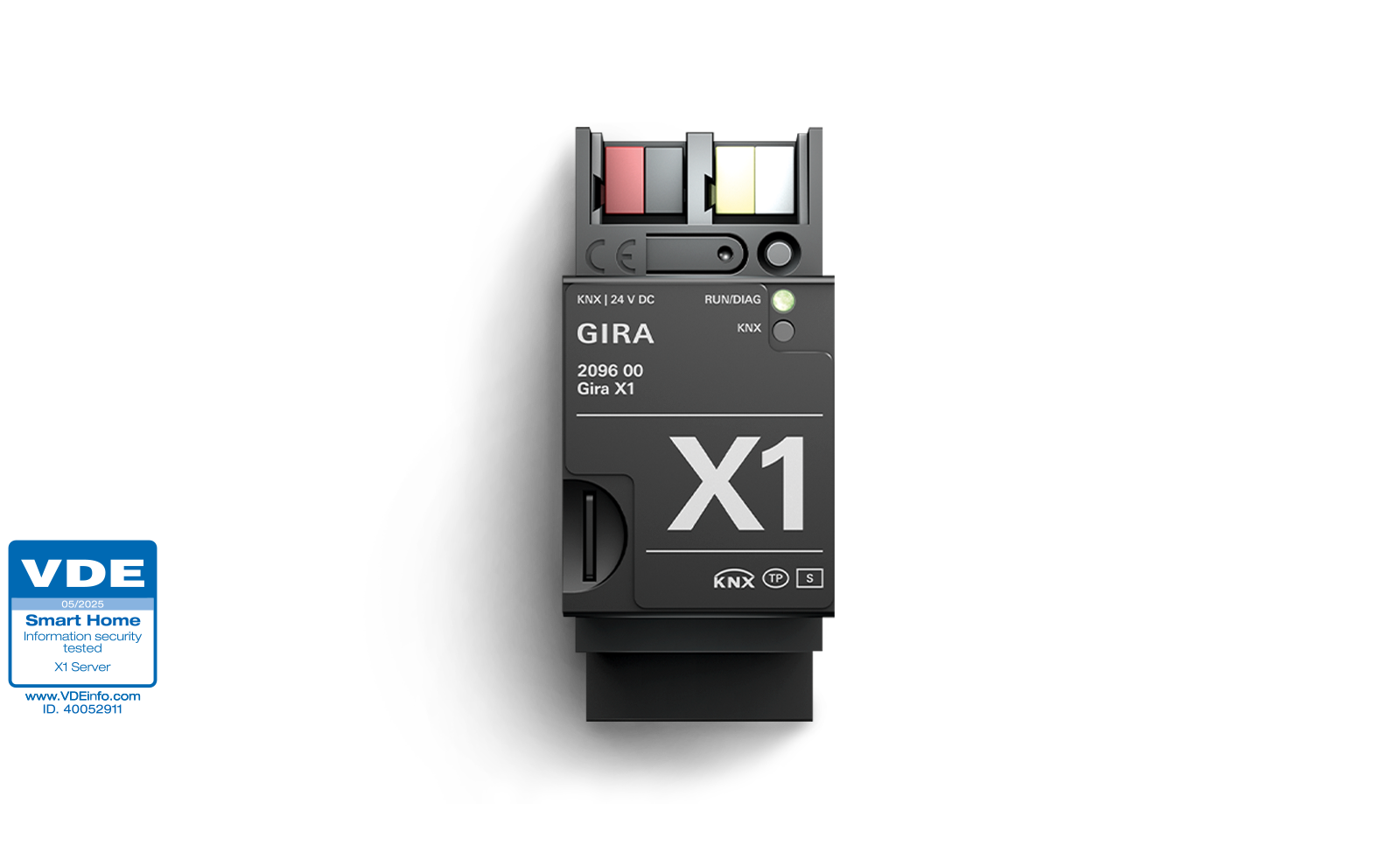

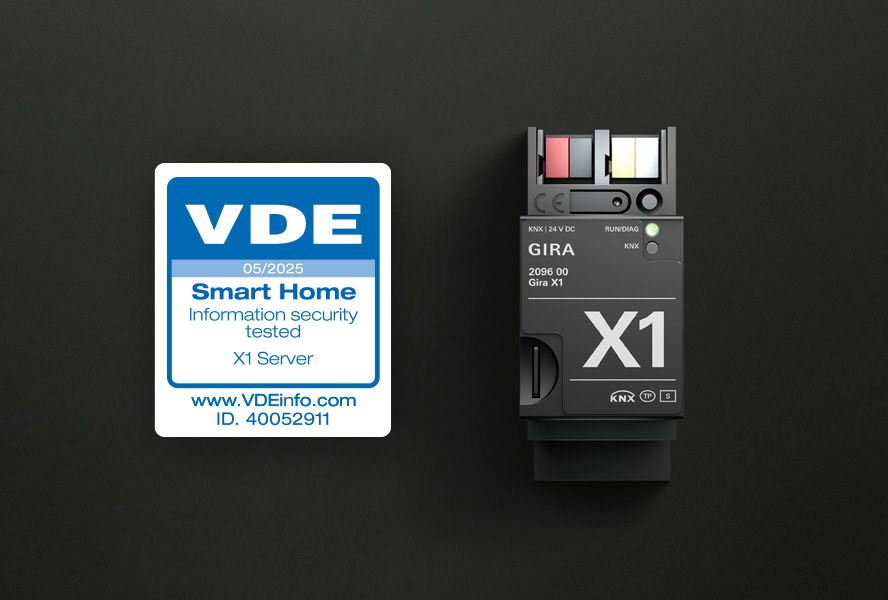

Gira X1 server – VDE-certified for information security.

Internet security is crucial for peace of mind when remotely accessing the Smart Home. That’s why the X1 has robust protection against external threats. This is also confirmed by the independent VDE institute, which awarded the Gira X1 server the “Smart Home – Information Security Tested” certification.

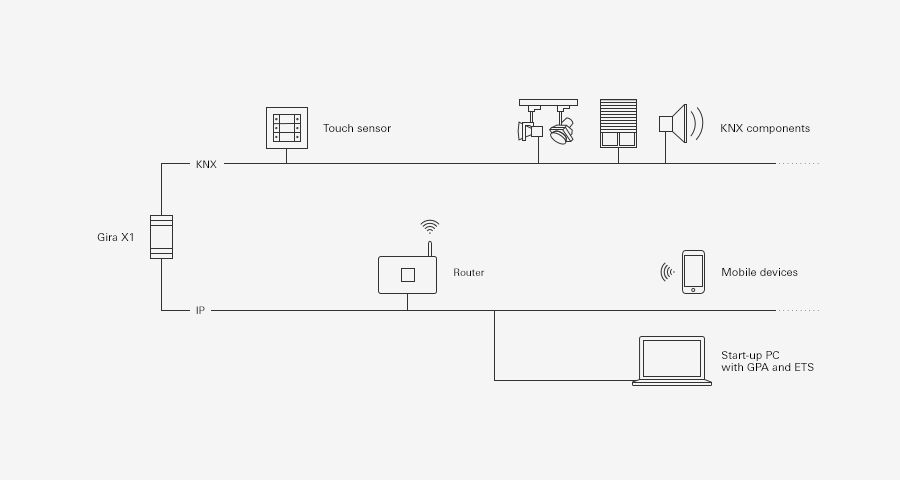

System graphics for the Gira X1

Controlling building technology throughout the house

With its visualisation function and combined with the Gira Smart Home app, the Gira X1 server makes it possible to easily control intelligent KNX building technology from a smartphone or tablet anywhere in the house using an IP and a WLAN router.

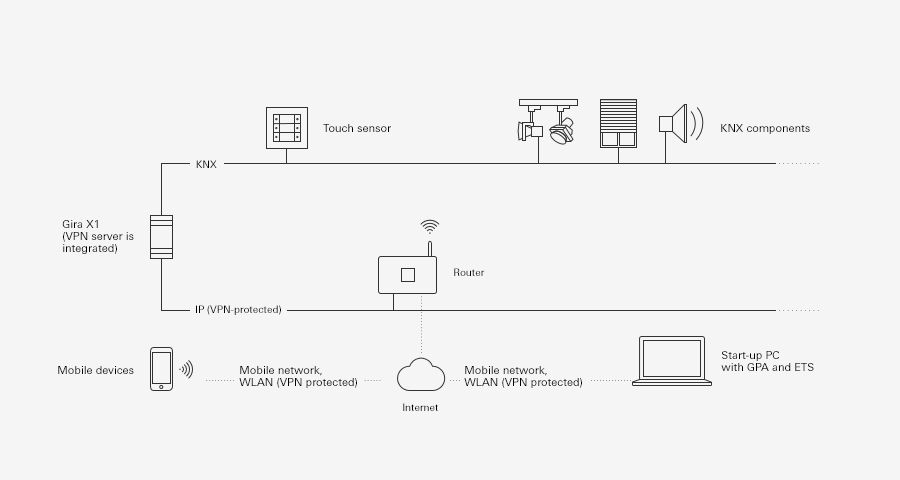

Controlling building technology remotely

As the Gira X1 server has an integrated VPN server, it is also able to create a secure external connection over the internet, making it possible to control, operate, set up and maintain the KNX system remotely.

KNX DRA Gira X1

KNX medium:

TP256

Rated voltage:

DC 24 to 30 V

Power consumption:

4 W

IP communication:

Ethernet 10/100 BaseT (10/100 Mbit/s)

Supported protocols:

DHCP, AutoIP, TCP/IP, UDP/IP

Connections

IP:

2 x RJ45 jacks

KNX:

Connection and junction terminal

Ambient temperature:

0 °C to +45 °C

microSD card

for SDK functions:

up to 32 GB (SDHC)

Downloads

Operating instructions

Gira X1

Operating instructions for the Gira Smart Home app

Bestell-Nr 2096 00

PDF, 2,4 MB

Download

Gira X1

Installation and operating instructions

Bestell-Nr 2096 00

PDF, 382,8 KB

Download

Set up Amazon Alexa

This document describes the setup of Amazon Alexa in connection with the Gira S1 and the Gira X1 or Gira HomeServer.

Bestell-Nr 2089 00

PDF, 4,6 MB

Download

Set up Google Assistant

This document describes the setup of Google Assistant in connection with the Gira S1 and the Gira X1 or Gira HomeServer.

Bestell-Nr 2089 00

PDF, 2,2 MB

Download

Technical Documentation

Gira X1

Technical documentation

Bestell-Nr 2096 00

PDF, 1,8 MB

Download

Brochures

Gira Smart Home

Bestell-Nr 18124 90

PDF, 2,0 MB

Download

Smart Home made easy.

Gira One.

Bestell-Nr 19823 90

PDF, 1,9 MB

Download

Software

Gira X1

Product database from ETS 4.1.8

Bestell-Nr 2096 00

ZIP, 246,7 KB

Download

Gira X1 firmware update

To perform the update the Gira Project Assistant V 5.1 is required.

Bestell-Nr 2096 00

ZIP, 50,8 MB

Download

Gira Projekt Assistent (GPA)

Configuration software for Gira One, Gira L1, Gira X1, Gira S1, Gira G1, DCS-IP data interface and Alarm Connect security system.

ZIP, 1067,2 MB

Download

Gira X1 Logic node Schüco

Control of Schüco windows and Schüco sliding systems: The logic node uses the information from the 4-byte datapoint type "Status" of the Schüco KNX gateway to allow control with the Gira X1 function "Shutters/blinds".

Bestell-Nr 2096 00

ZIP, 467,0 KB

Download

Gira Smart Home Windows Client 32 Bit

Gira Smart Home App for Windows PC

Bestell-Nr 2096 00, 2039 00

EXE, 59,4 MB

Download

Gira Smart Home Windows Client 64 Bit

Gira Smart Home App for Windows PC

Bestell-Nr 2096 00, 2039 00

EXE, 62,2 MB

Download

Gira X1 Logic modules "Gira G1 notification" & "Gira G1 DCS-state"

Gira G1 notification: This node is used for the easy generation of text messages on the Gira G1. Gira DCS-state: This node is used to evaluate the Gira G1’s door communication status.

Bestell-Nr 2096 00

ZIP, 461,2 KB

Download

The following files are not available in the language you have selected, but may be in other translations.

Gira X1 Logikbaustein Modbus-Schnittstelle

Der Logikbaustein ermoglicht eine Integration von PV-Anlagen, Batteriespeichern und Wärmepumpen sowie Heizungsanlagen und Ladestationen in das KNX System.

Bestell-Nr 2096 00

ZIP, 233,9 KB

Download
