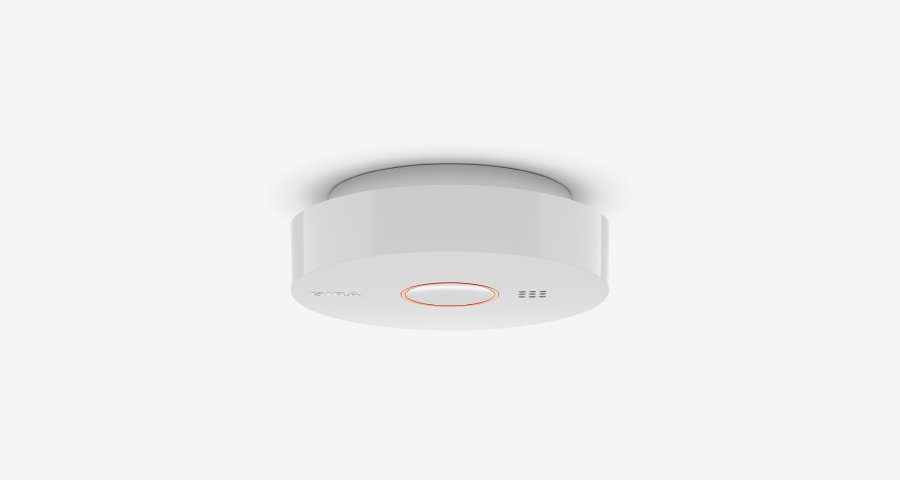

Gira Basic Q smoke alarm device

Safe through scattered light measurement - now with Q quality seal

The Gira Basic Q smoke alarm device can save lives. It auto­mat­ic­ally de­tects dan­ger­ous ac­cu­mu­la­tions of smoke and sounds the alarm with a loud, pulsing alarm tone (85 dB) and a red LED ring in­dic­ator. In doing so, it util­ises the pho­to­elec­tric scattered-​light prin­ciple: Smoke, which de­vel­ops dur­ing fires, con­tains fine smoke particles. The dens­ity of these smoke particles is meas­ured by the smoke alarm device. A diode in the device con­tinu­ously emits light sig­nals, and a photo cell ana­lyses the scattered light caused by smoke particles.

An alarm is triggered as soon as the con­cen­tra­tion of scattered light ex­ceeds the limit. With its high-​quality design, the Gira Basic Q smoke alarm device blends in well with any sur­round­ings. The device has an in­teg­rated bat­tery with a ser­vice life of at least 10 years. Its cost-​effective nature makes it easy to take pre­cau­tions against dam­age caused by fire in every room.

Online catalogue
Downloads
Training
  • Q seal for en­hanced qual­ity
  • Visual alarm via a red LED ring in­dic­ator
  • But­ton for func­tion test
  • Bat­tery fail­ure warn­ing (30 days)
  • De­tec­tion of smoke through scattered light meas­ure­ment
  • Acous­tic alarm with a loud, pulsat­ing tone
  • Bat­tery life of at least 10 years
  • Re­duc­tion in the num­ber of false alarms

Q seal for enhanced quality

Holder of a ‘Q’ qual­ity seal, the Gira Basic Q smoke alarm device meets the strin­gent qual­ity cri­teria of vfdb (Ger­man Fire pro­tec­tion As­so­ci­ation) guideline 14-01 and DIN EN 14604:2009-​02. The Q stands for veri­fied dur­ab­il­ity and the re­duc­tion of false alarms with sim­ul­tan­eously in­creased sta­bil­ity, e.g. against ex­ternal factors.

More about the Q qual­ity seal

Detection of smoke through scattered light measurement

The Gira Basic Q smoke alarm device de­tects fires at an early stage from the build-​up of smoke. To do this, it uses the pho­to­elec­tric scattered-​light prin­ciple: A diode in the device con­tinu­ously emits light sig­nals to de­tect smoke, and a photo cell ana­lyses the scattered light caused by smoke particles. An alarm is triggered as soon as the con­cen­tra­tion of scattered light ex­ceeds the limit.

Battery failure warning (30 days)

The Gira Basic Q smoke alarm device con­tinu­ously mon­it­ors its smoke ana­lysis and checks the bat­tery voltage. Any faults are in­dic­ated by a fault sig­nal (sig­nal tone and LED). The Gira Basic Q smoke alarm device sig­nals that the device will have to be re­placed 30 days in ad­vance. The device re­mains com­pletely func­tional dur­ing this period.

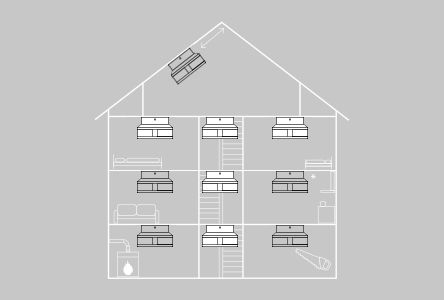

Installation locations

There should be smoke alarm devices in the hall­way and stair­case, as well as in each bed­room and chil­dren’s room. In build­ings with sev­eral floors, there should be at least one smoke alarm device on each floor. This in­creases the safety of all the oc­cu­pants of the build­ing. Note: In the kit­chen, the Gira Basic Q smoke alarm device should be in­stalled as far from the cook­ing area as pos­sible in order to pre­vent false alarms caused by water va­pour.

Certified safety: Recommendation for the installation of smoke alarm devices

Smoke alarm devices are lifesavers – and must there­fore be able to do their job re­li­ably in case of an emer­gency. For this reason, you must en­sure that they are cor­rectly in­stalled. In order to en­sure that smoke alarm de­tect­ors are pro­fes­sion­ally in­stalled in ac­cord­ance with DIN 14676, the stand­ard provides re­com­mend­a­tions for veri­fy­ing the pro­fes­sional com­pet­ence of ser­vice pro­viders per­form­ing the plan­ning, in­stall­a­tion and main­ten­ance of such devices.

‘Gira smoke alarm device’ online distance learning course

Mandatory installation of smoke alarm devices

400 fire deaths, 4,000 burn vic­tims with long-​term dam­age and more than a bil­lion euros of fire dam­age in the private sec­tor every year – in most cases, a smoke alarm device could have saved lives, be­cause far more than half of all fire vic­tims are caught un­aware while asleep at night. Nowadays, Ger­many has im­ple­men­ted a na­tion­wide reg­u­la­tion re­quir­ing the in­stall­a­tion of smoke alarm devices. This means that all new builds and con­ver­sions at least must be equipped with suit­able smoke alarm devices in bed­rooms, chil­dren’s rooms, and hall­ways that are used as res­cue routes lead­ing out­doors. In some cases, vari­ous trans­itional reg­u­la­tions apply to ex­ist­ing res­id­ences. They must then also be equipped ac­cord­ingly.

Installation instructions

The Gira Basic Q smoke alarm device has a flat design which en­ables easy in­stall­a­tion. The battery-​operated device re­quires no wire con­nec­tions and func­tions op­tim­ally when it is moun­ted under the ceil­ing in the middle of the room. Where smoke alarm devices should be po­si­tioned to guar­an­tee min­imum pro­tec­tion var­ies de­pend­ing on the design of the house or apart­ment. In single-​story apart­ments, the hall­way used most fre­quently in case of fire should be part of the min­imum con­fig­ur­a­tion. In multi-​story build­ings, the hall­ways of each story must be in­cluded. How­ever, it is ad­vis­able to equip all rooms for op­timum pro­tec­tion.

Technical data

Power sup­ply:
per­man­ently in­stalled bat­tery
Bat­tery:
9-V lith­ium block bat­tery with ser­vice life of at least 10 years
Acous­tic alarm sig­nal:
pulsat­ing sound of at least 85 dB (A)
Op­tical alarm dis­play:
Light ring with red LED
Di­men­sions:
Ø 125 x H 38.5 mm
In­stall­a­tion height:
max. 4.50 m
Plastic ma­ter­ial:
PC-​ASA
Op­er­at­ing tem­per­at­ure:
-5 °C to +55 °C
Stor­age tem­per­at­ure:
-20 °C to +65 °C
Weight:
ap­prox. 240 g
Pro­tec­tion type:
IP 42
Ap­plic­a­tion range:
Ac­cord­ing to DIN 14676
Ap­proval ac­cord­ing to:
DIN EN 14604

Design/awards

Product design
Gira Design Team, Rade­vorm­wald

Download

Operating instructions

Smoke alarm device Dual Q

Installation and operating instructions

Bestell-Nr 2336 02, 2346 02

PDF, 270,1 KB

Download

Technical Documentation

The following files are not available in the language you have selected, but may be in other translations.

Wartungshandbuch für Rauchwarnmelder Q

Inbetriebnahme / Wartung durch die Fachkraft für Rauchwarnmelder Q gemäß DIN 14676

Bestell-Nr 2336 02, 2346 02, 1145 02, 1149 02, 2333 00

PDF, 1,0 MB

Download
