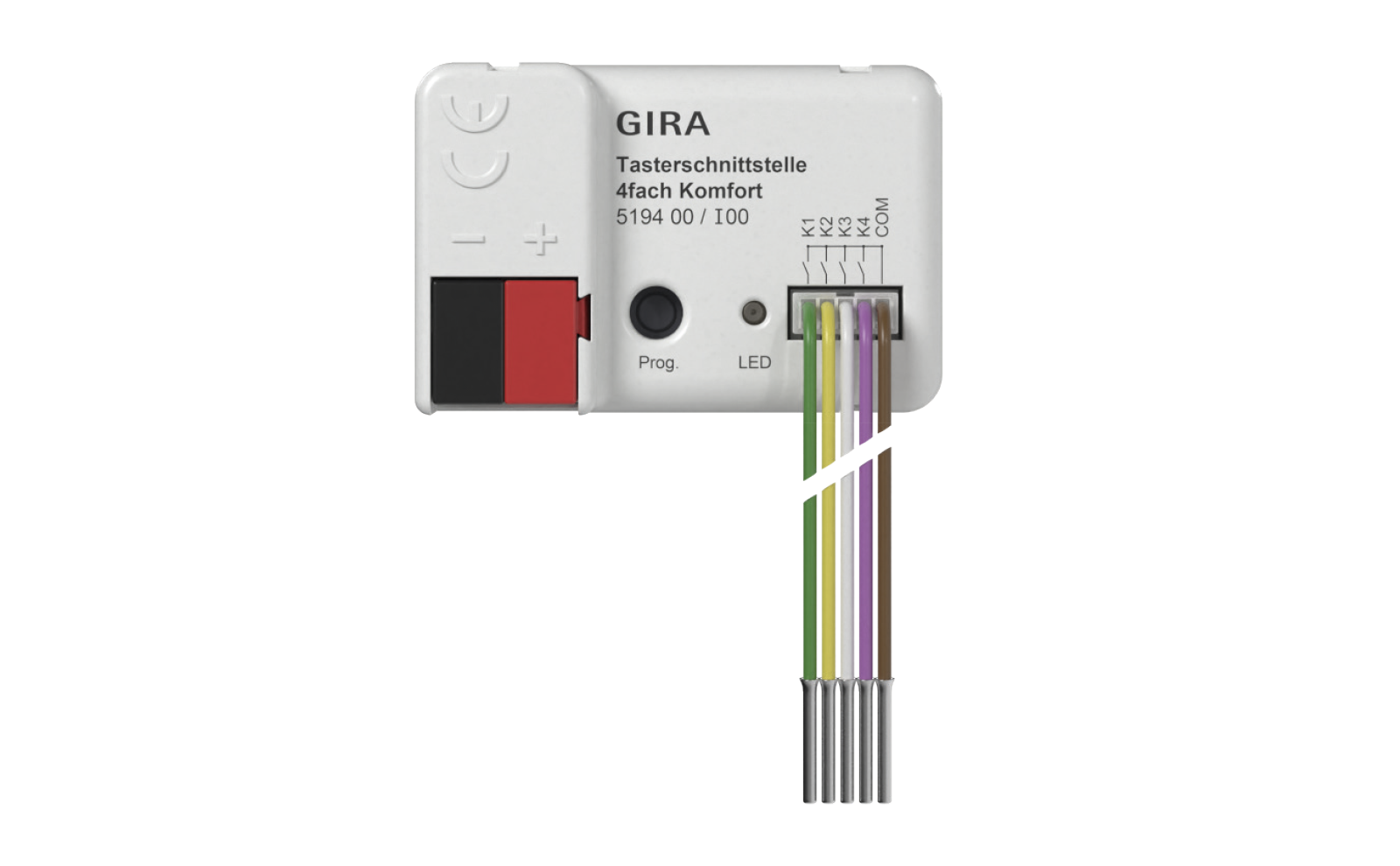

Gira KNX Secure button interfaces.

• Six variants—2-gang/4-gang/8-gang—each available in Standard and Komfort designs
• KNX Secure-compatible and updatable
• Automatic removal of oxide layer on the connected contacts
• Combination of adjacent channels for the button and door/window contact functions
• Temperature measurement via the Gira remote sensor

• Assessment by the leakage and condensation sensors
• Connection cables with core jackets to simplify installation
• Depending on the product variant, the cable length can be increased to up to 30 m
• Intuitive ETS application

The button interface is available in variants with two, four or eight independent channels. Depending on the ETS parametrisation, the channels can work as inputs or outputs and can be individually blocked.

The button interface software is regularly updated, e.g. to provide product improvements, bug fixes or new functions. Products that have already been installed can also be subsequently updated.

Each product variant allows secure communication with other KNX Secure products in the building network and Smart Home.

The connected contacts of the buttons, switches or reed contacts feature automatic oxide layer removal. For simplified and reliable installation.

Functions that occupy two channels can be parametrised very easily in a single view with the button interfaces. For example, shading up/down, by combining channels 1 and 2. This solution is comparable to rocker and button functions in our operating devices.

The button interfaces can be started up intuitively in ETS thanks to a uniform design interface layout in Gira KNX products. This reduces possible errors during start-up and saves time.
