Gira E3

Ambiance as a range

The new Gira E3 design line combines rounded design contours with satin finish and glossy surfaces in nine subtle shades. A wide variety of designs can be created by combining support frames and inserts in anthracite or pure white glossy with the colourful cover frames. The whole world of intelligent building technology is at your fingertips with matching inserts from the Gira System 55. Gira E3 is the ideal choice for harmoniously coordinated interior design concepts.

Gira E3 gallery


Colours

By combining anthracite or pure white glossy carrier frames and inserts with coloured cover frames, the Gira E3 design line offers a diverse range of design variants. The exclusive colour palette ranges from minimalist pure white glossy through warm grey tones to subtle beige and brown as well as cool blue grey or grey green.

Pure white glossy
similar to RAL 9010

Light grey soft touch/pure white glossy
NCS: 2000-N

Light grey soft touch/anthracite
NCS: 2000-N

Grey soft touch/pure white glossy
NCS: 3500-N

Grey soft touch/anthracite
NCS: 3500-N

Dark grey soft touch/pure white glossy
NCS: 7000-N

Dark grey soft touch/anthracite
NCS: 7000-N

Sand soft touch/pure white glossy
NCS: 2005-Y20R

Sand soft touch/anthracite
NCS: 2005-Y20R

Grey beige soft touch/pure white glossy
NCS: 4005-Y20R

Grey beige soft touch/anthracite
NCS: 4005-Y20R

Umber soft touch/pure white glossy
NCS: 7010-Y10R

Umber soft touch/anthracite
NCS: 7010-Y10R

Blue grey soft touch/pure white glossy
NCS: 4010-R90B

Blue grey soft touch/anthracite
NCS: 4010-R90B

Grey green soft touch/pure white glossy
NCS: 4005-G50Y

Grey green soft touch/anthracite
NCS: 4005-G50Y

Sample functions

More than 300 functions for a modern electrical installation

More than 300 smart functions from the Gira System 55 can be integrated into the frames of the Gira E3 design line to enable customised convenience, value and security. For example, in addition to socket outlets and light switches, the frames can also house the Gira home station, the Gira flush-mounted radio, Gira pushbutton sensors and much more besides. All of the inserts are available in different colour variants. Gira E3 fulfils all the requirements of a modern home and allows a multitude of building installation functions to be implemented in a uniform design language.

More about the Gira System 55



Gira eNet wireless wall transmitter

Gira eNet is the bi-directional wireless system for the smart networking of building technology, allowing you to control lighting, blinds and scenes easily and by remote. The battery-operated Gira wireless wall transmitters can be conveniently placed precisely where switches or buttons are required, regardless of the mains connections. They can be either securely mounted on the wall using screws or conveniently attached to smooth surfaces with adhesive strips. Bi-colour LEDs indicate both the signal transmission status and the actuator status.

Gira eNet wireless wall transmitter



Gira surface-mounted video home station Plus

A striking feature of the Gira surface-mounted video home station is its homogeneous front panel, which harmonises perfectly with the clean surfaces and contours of the Gira E3 design line. Its large 5.6 cm (2.2") TFT-colour display is flush with the touch-sensitive buttons on the control panel. The user simply needs to gently touch the appropriate symbol. In order to ensure greater operational reliability, internal calls and switching actions can be assigned individual names. The speakerphone function offers excellent voice quality, even if the speaker is not standing directly in front of the microphone.

Gira surface-mounted video home station Plus



Gira Sensotec LED

Finding your way safely in the dark and switching on the room light if needed with a single contactless motion: the Gira Sensotec LED unites these functions in one device. The Gira Sensotec LED is a contactless switch with integrated LED orientation light. When motion is detected, it switches on the orientation light. If more light is needed, the user can switch on the lighting with a single contactless motion from a distance of 5 cm. The illumination intensity can be adjusted in automatic mode to prevent glare.

Gira Sensotec LED



Gira RDS flush-mounted radio

The Gira RDS flush-mounted radio simply sits in the wall – just like your light switches and socket outlets. This does away with the need for annoying cables, and work surfaces and counters can be kept free. The speaker has been completely redesigned to give the RDS flush-mounted radio a pure sound – and in excellent stereo quality when the Gira additional speaker, which is available as an option, is connected. Adding a Gira docking station to the system allows you to connect external music sources to the Gira RDS flush-mounted radio or a stereo system via Bluetooth, and also provides a fixed charging unit for a wide variety of mobile devices.

Gira RDS flush-mounted radio

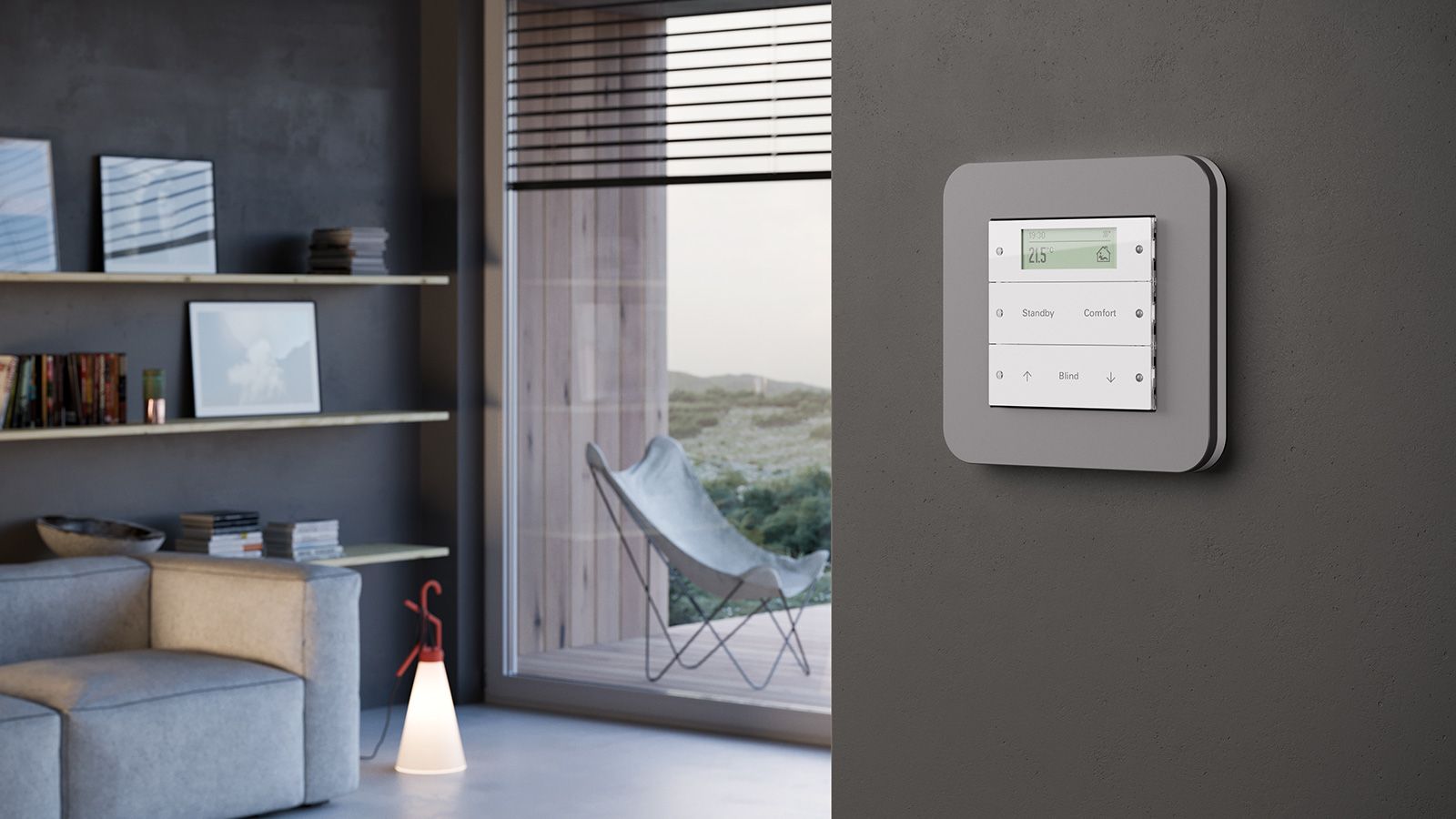

Gira pushbutton sensor 3 Plus

The Gira touch sensor 3 Plus guarantees a particularly high level of convenience when operating numerous KNX functions. In addition to an integrated temperature sensor to measure the local temperature, it also features a controller for direct room temperature control. An external temperature sensor can also be connected if desired. Moreover, the touch sensor 3 Plus is equipped with a graphic display. It is used to clearly display temperature values, the controller status and messages received via the KNX system.

Gira pushbutton sensor 3 Plus



Gira SCHUKO socket outlet with
LED orientation light

The Gira SCHUKO socket outlet with LED orientation light has a recessed light strip that projects a light corridor downwards by means of a white LED. This provides glare-free, indirect orientation lighting. The Gira socket outlet with LED orientation light also features a twilight sensor that automatically turns on the light when darkness sets in and switches it off again when there is enough natural light.

SCHUKO socket outlet with LED lighting

Technical data

General

Platform
System 55, which allows over 300 functions to be integrated.
Installation and protection type:
Flush-mounted, IP 20

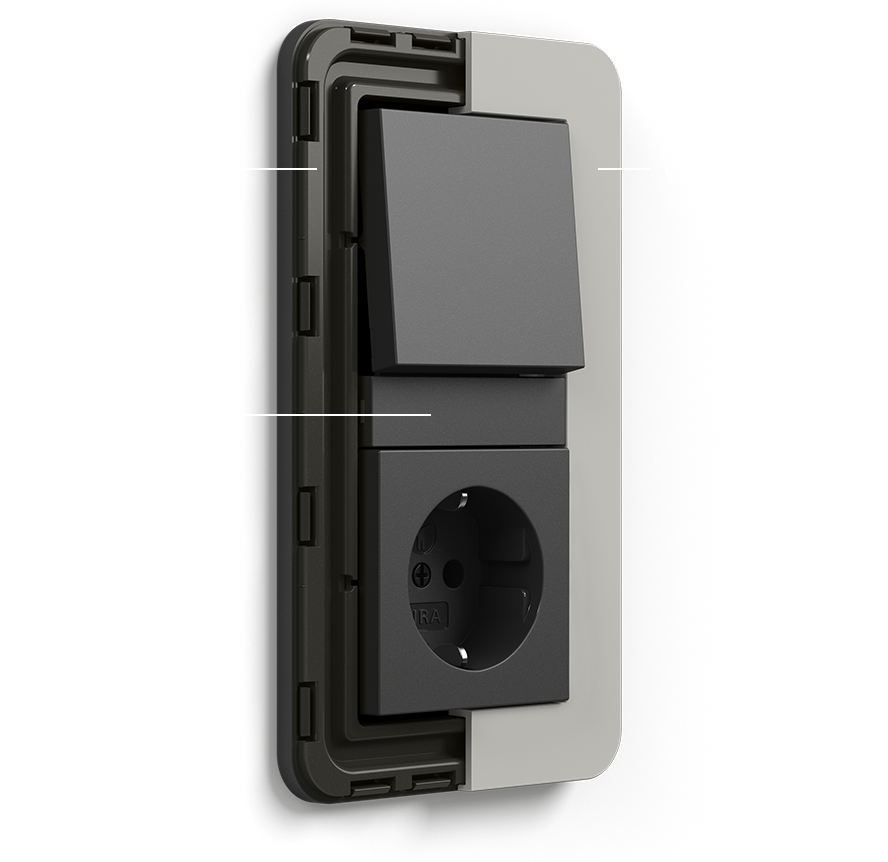

Materials

Support frame:
Anthracite: Thermoplastic Pure white glossy: Thermoplastic
Cover frame:
Soft touch: Thermoplastic lacquered Pure white glossy: Thermoplastic
Crossbar:
Thermoplastic As part of the support frame, the surface of the crossbar is either anthracite or pure white glossy.
Innovative design:
The structure of the support frame and cover frame is optimised for high rigidity and efficient use of materials – for reliability and sustainability.


Dimensions

Width:
91.6 mm
Height:
162.7 mm
Depth:
9.5 mm


Cover frame colours

Pure white glossy

Light grey soft touch

Grey soft touch

Dark grey soft touch

Blue grey soft touch

Sand soft touch

Grey beige soft touch

Umber soft touch

Grey green soft touch

Frame variants

1fach

W 91.6 mm
H 91.6 mm
D 9.5 mm
R: 11.0 mm

2fach

W 91.6 mm
H 162.7 mm
D 9.5 mm
R: 11.0 mm

2fach
without crossbar

W 91.6 mm
H 162.7 mm
D 9.5 mm
R: 11.0 mm

3fach

W 91.6 mm
H 234.2 mm
D 9.5 mm
R: 11.0 mm

4fach

W 91.6 mm
H 305.5 mm
D 9.5 mm
R: 11.0 mm

5fach

W 91.6 mm
H 376.8 mm
D 9.5 mm
R: 11.0 mm

Gallery

Gira E3 grey beige soft touch/pure white glossy,
pushbutton switch

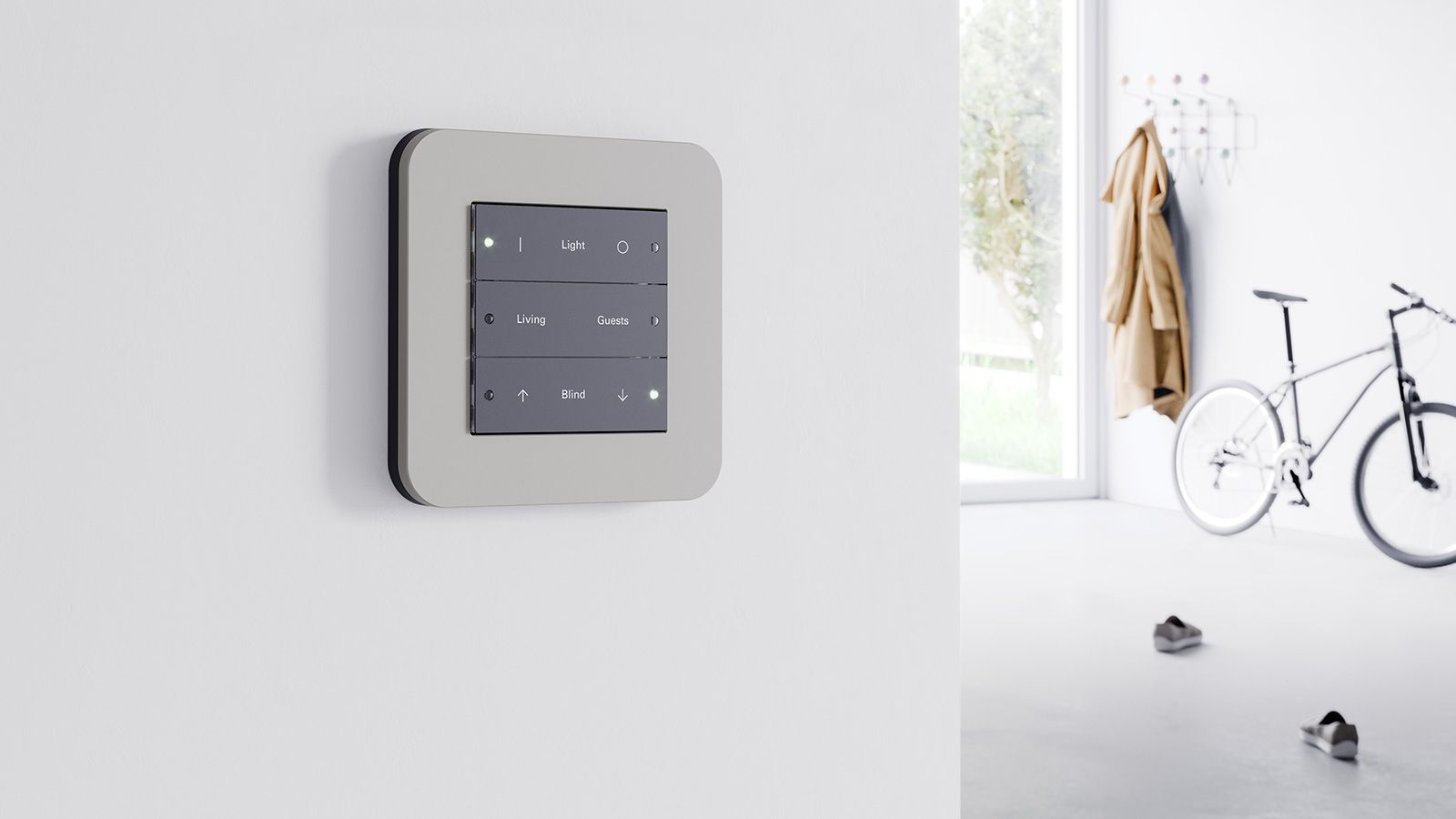

Gira E3 blue grey soft touch/anthracite
pushbutton sensor 6-gang

Gira E3 pure white glossy,
2-gang combination pushbutton switch/pushbutton switch

Download

Brochures

Gira Design Line & Function

Bestell-Nr 18125 90

PDF, 4,4 MB

Download
