Power supply and charging in one

Gira has launched its SCHUKO USB socket outlet with additional USB A and USB C port, thus combining the functions of a socket outlet with the ability to charge mobile devices via a charging cable with no need for an extra power supply. The flat design makes installation especially easy, leaving plenty of room for cables. The Gira SCHUKO USB socket outlet A&C is available in pure white glossy, pure white matt and anthracite. Additional colour variants will be available from January 2022.

  • USB A and USB C charging port: suitable for both older devices with a USB A cable and current and future devices
  • Just one flush-mounted socket enables three different functions
  • Available in pure white glossy, pure white matt and anthracite
  • The low installation depth makes installation easy and ensures plenty of room for cables. Also suitable for a flat installation box
  • VDE certification

Technical data:

  • Input voltage 220-250 V AC, 50 Hz
  • Output voltage 4.75-5.25 V
  • Output current 0.01-3.0 A
  • Output power Type A 12.0 W and Type C 15.0 W
  • Energy efficiency ≥ 82.0%
  • Input current max. 0.5 A
  • Ambient temperature +5°C to +35°C
  • Assembly of flush-mounted device box (DIN 49073)

Colour variants

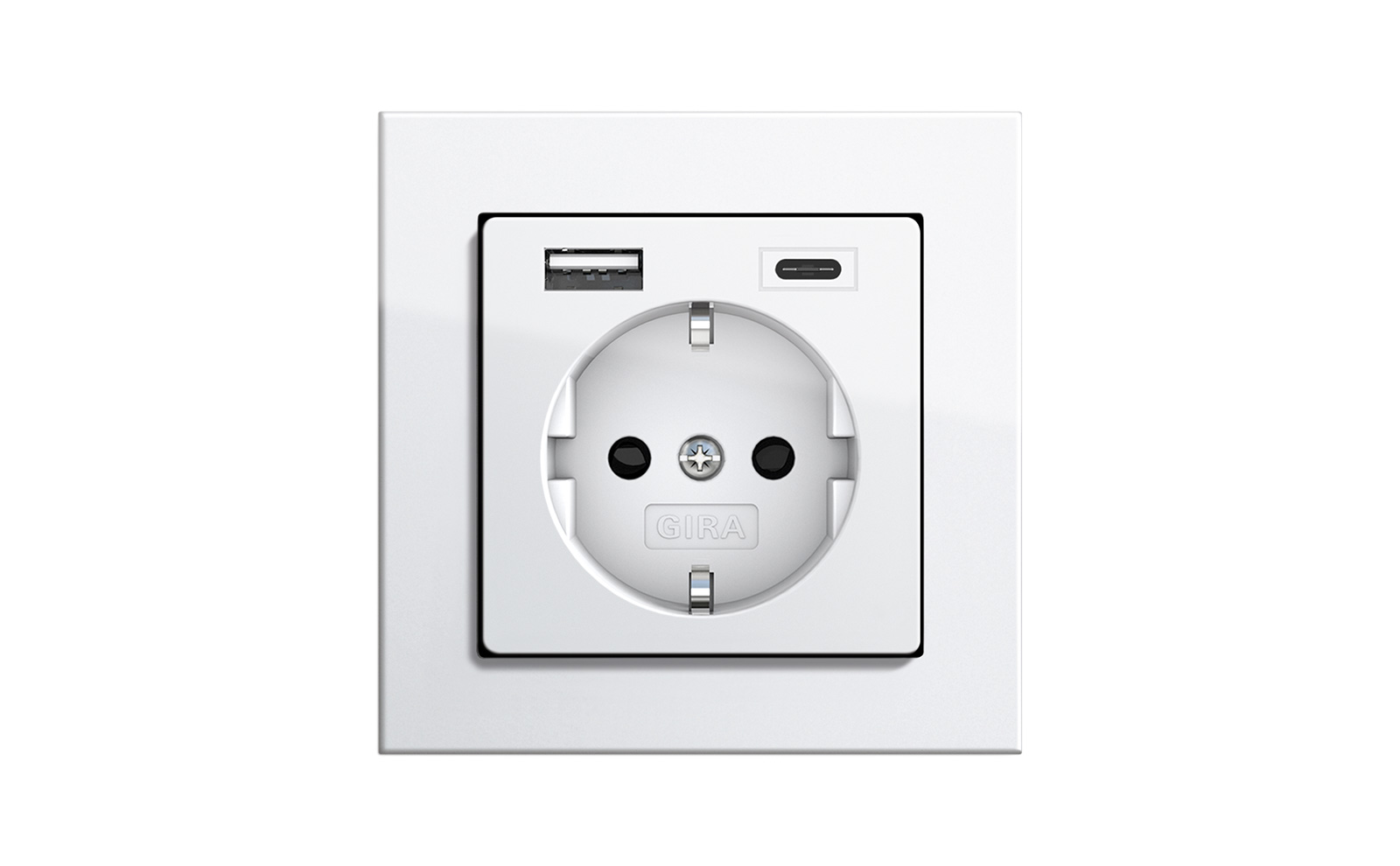

Gira SCHUKO USB, pure white glossy

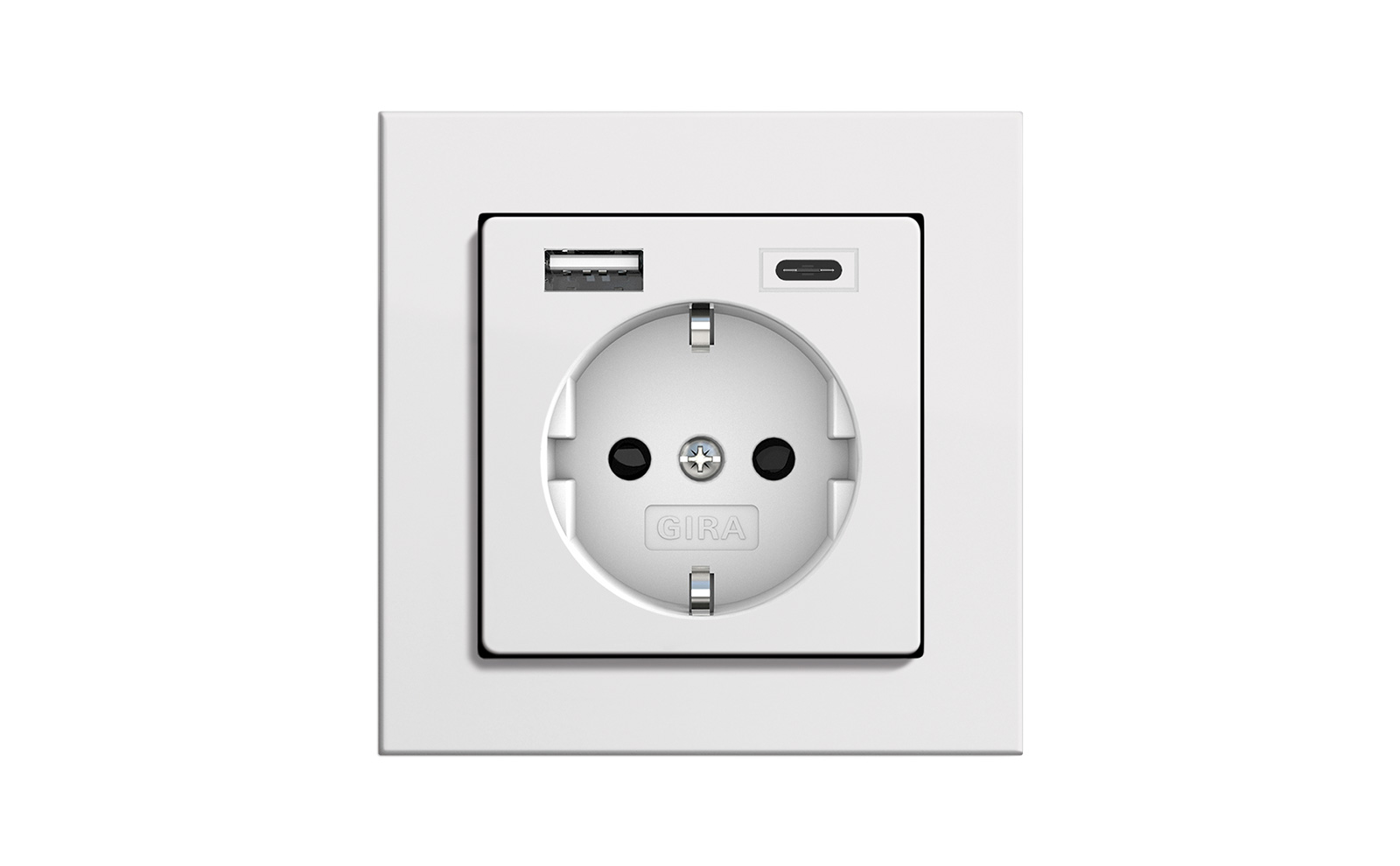

Gira SCHUKO USB, pure white matt

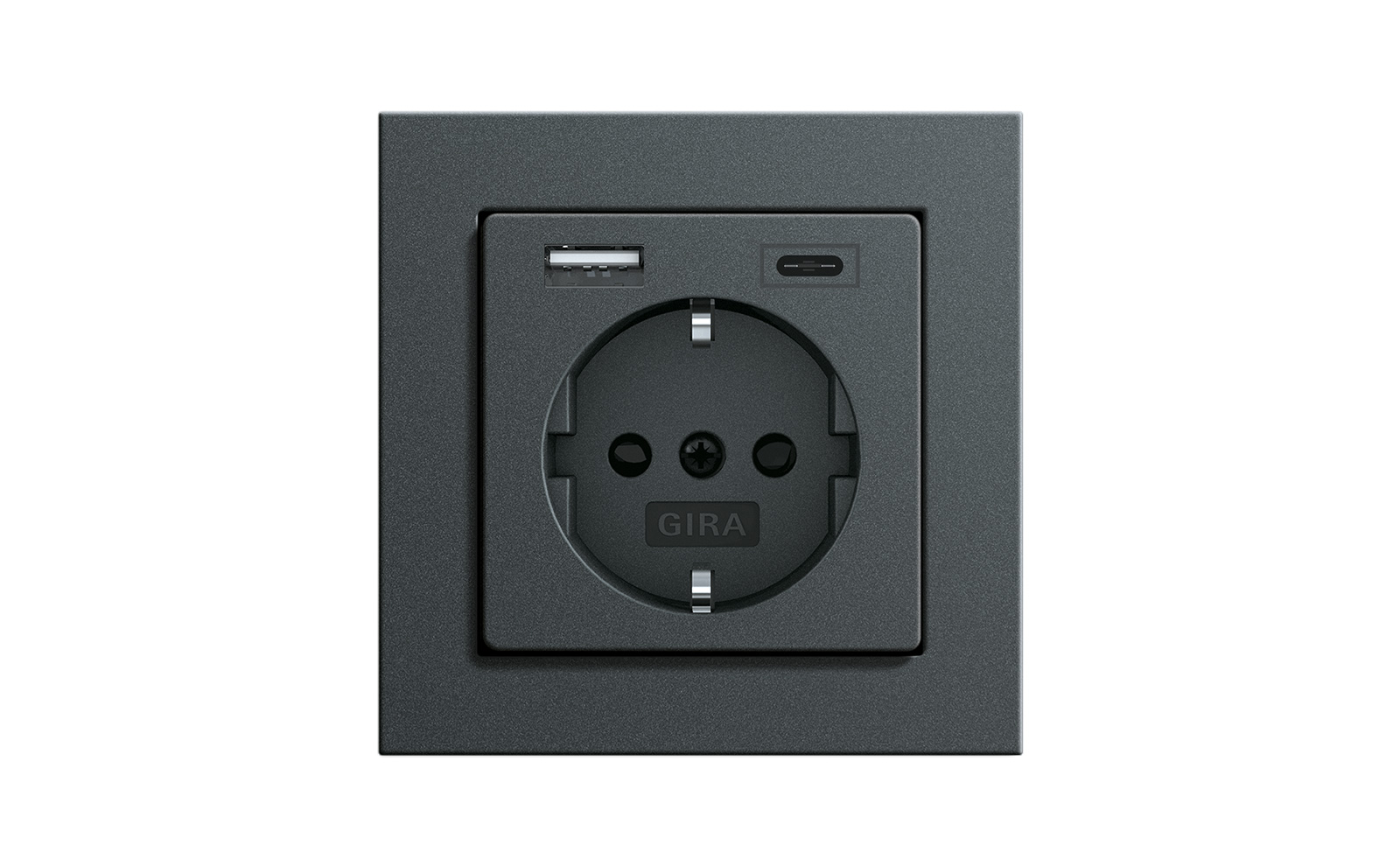

Gira SCHUKO USB, anthracite
