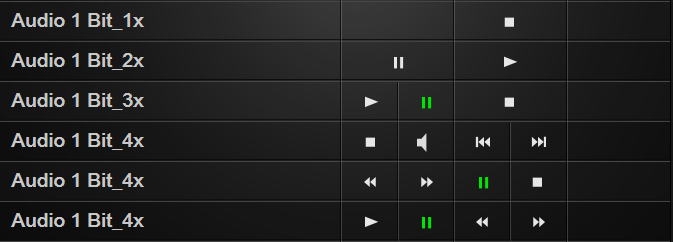

The function template is used to represent individual displays/operations for up to 4 1-bit communication objects from the audio range. The number of fields (1-4) and the symbols to be displayed are determined using parameters. The state is toggled (0 /1) by clicking on the corresponding field.

For the functions Next track and Fast forward, a 1 -telegram is set for the Previous track functions and a 0-telegram is sent for Rewind.

The following actions can be set for each field:

• Play/Pause
• Play/Stop
• Repeat (active/inactive)
• Shuffle (active/inactive)
• Mute (active/inactive)
• Next track
• Previous track
• Fast forward
• Rewind
• Record (active/inactive)
• Play/PAUSE green
• Play Pause/Stop
• Play (active/inactive)
• Pause (active/inactive)
• Play Pause (active/inactive)
• Loudness

Application example:

The function template can be used to combine up to a maximum of four 1-bit status displays and/or operating functions from the audio range within one line and operate them.
