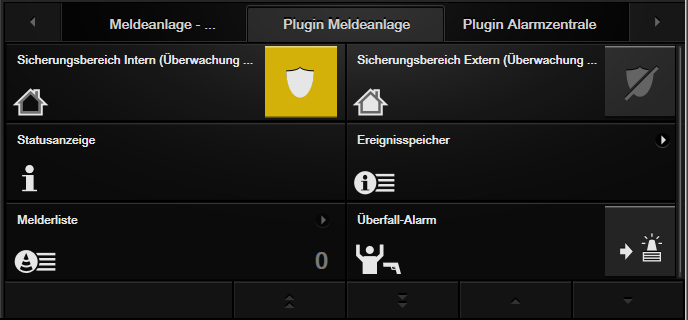

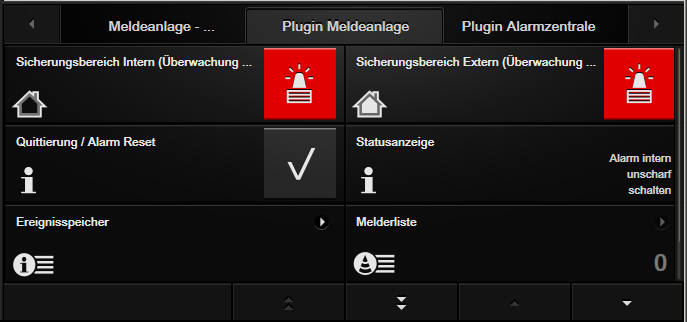

The signalling system plug-in is used in connection with the logic modules for realising a signalling system with the Gira HomeServer to display the current system states of the signalling system or operate it.
The following sub-elements can be displayed in the plug-in:
1. Internal security area (monitoring of exterior)
2. External security area (monitoring of exterior and interior)

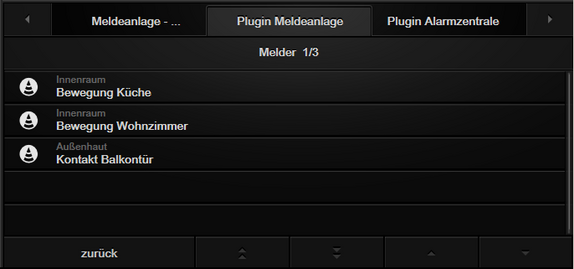

3. List of alarm devices

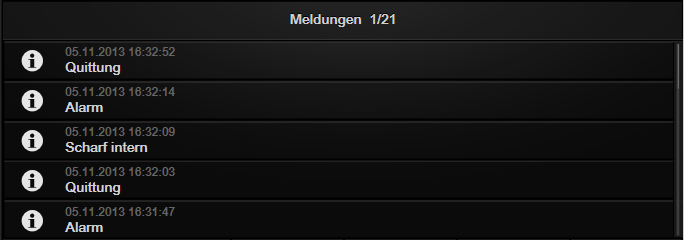

4. Event memory
5. Acknowledgement
6. Status display
7. Fire alarm
8. Assault alarm

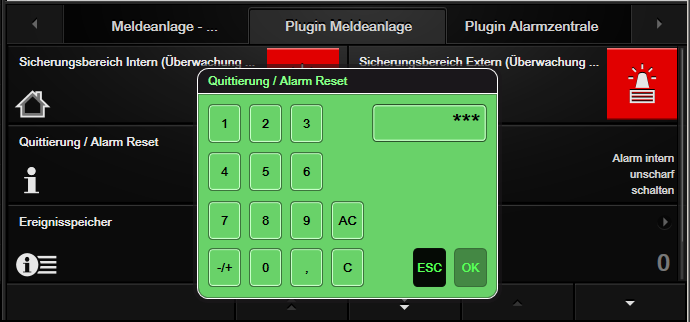

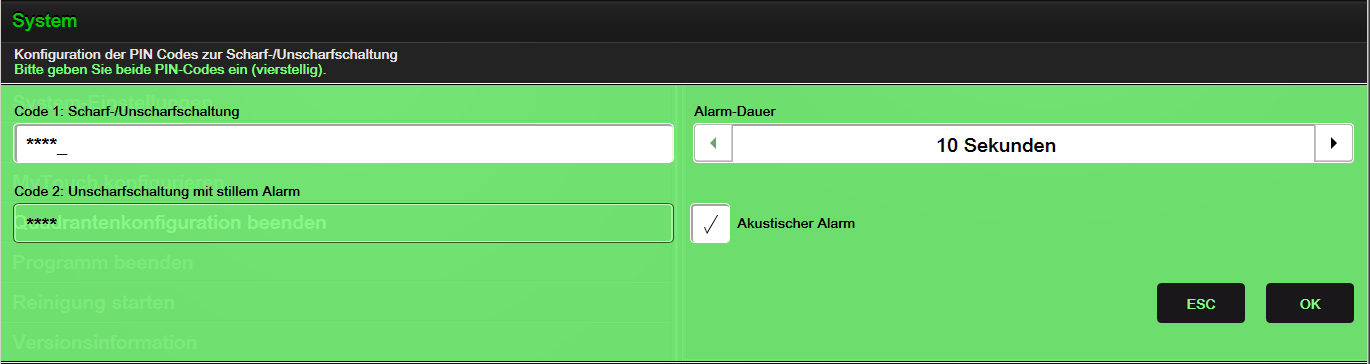

The activation and deactivation are provided with four-digit PIN protection. It can be set individually via the quadrant configuration.
In addition to the "normal" code, a second code can be parameterised for a silent alarm. This can be used to activate or deactivate the system and simultaneously trigger a silent alarm per communication object. This allows an action to be triggered invisibly in case of an assault.
Hard- und Softwareversionen: Gira HomeServer - version 4.7.0, QuadClient from 4.7.0
Kompatible Geräte: Gira Control Clients
Gira Hardware: 1x 052900 Gira HomeServer 4 KNX
Bekannte Ausnahmen: Note: The plug-in supports the Gira QuadClient with the Design 1-4. This means that it cannot be displayed on mobile devices using the Gira app.
Realisierungsdauer: 1 hr.
Updateinformationen: Version 1.1: .Net 4.5 from Experte/QC 4.7.0
