The factory setup of Gira X1 has the capacity of 250 functions and 1000 data points.

With this package you may extend the set of configurable functions for the deployment in larger objects.

This license package offers the following extensions.

• 125 additional functions
• 500 additional group address data points

After the purchase, the extensions will be automatically synchronized with GPA. Important: Both GPA and Gira X1 must be online.

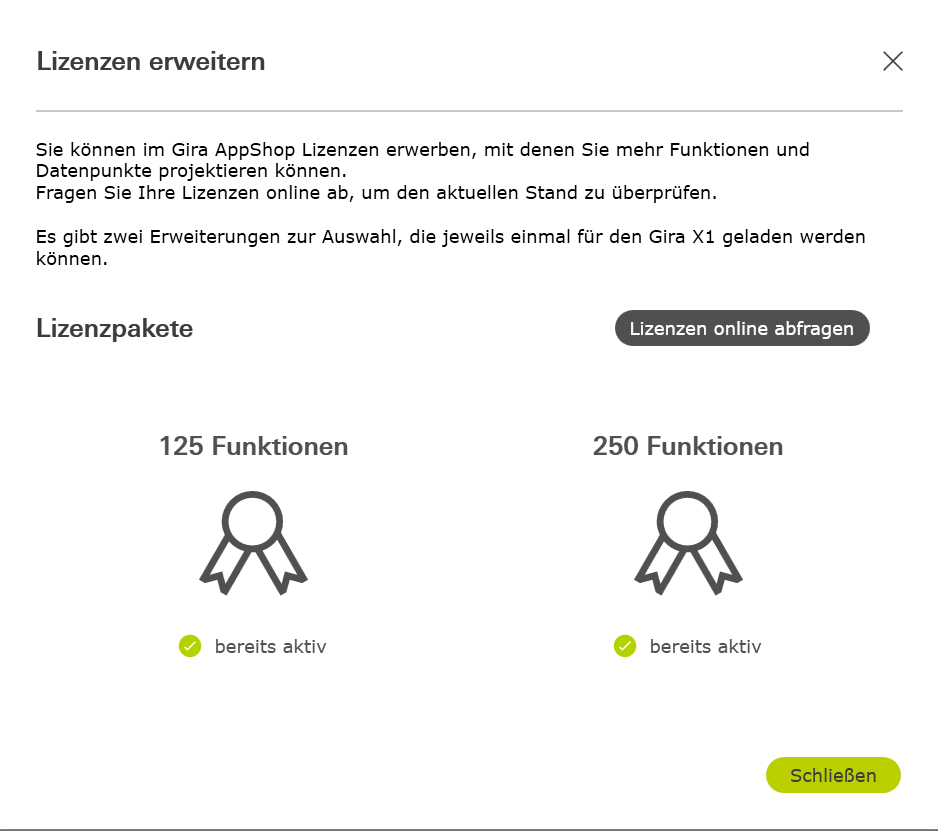

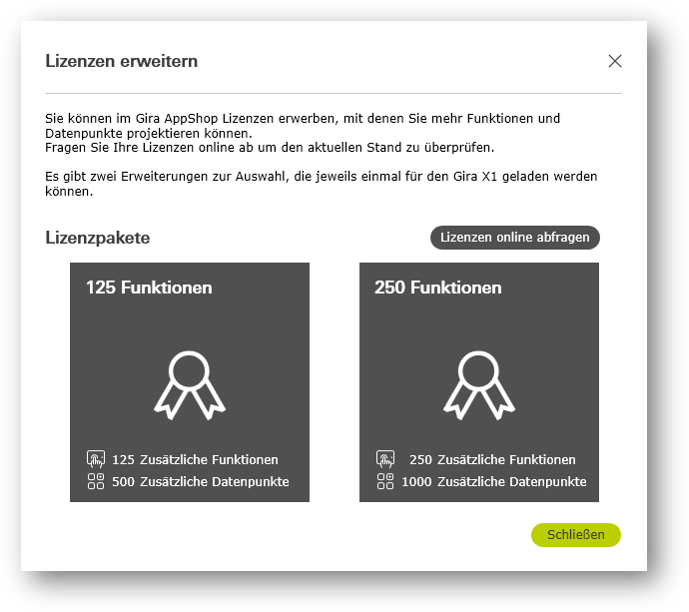

You do not need to download a license module to be able to use the software extension package. After assigning the package to the MAC address of the Gira X1 in the Gira AppShop, change to the GPA. In the GPA project you will find the available functions under "Device management" in the "Visualization" tab on the Gira X1. Now you can activate the license packages you have purchased.

Limitations:

This extension is only available for the Gira X1.

The Gira X1 with version 2.5 and the GPA with version 4.2 are required.

This extension package can be applied only once per MAC address.

Together with the other extension package „Gira X1 software extension 250 functions“ in total 1.500 data points and 375 functions can be added to the Gira X1.

This means that you can upgrade the Gira X1 to a maximum of 625 functions with 2.500 data points.
