The logic node is used in conjunction with the KNX gateway from the company Schüco in order to evaluate the latest status or event information from the Schüco system.

A separate logic node must be used for each window/slider element, and connected to the KNX gateway by means of group addresses.

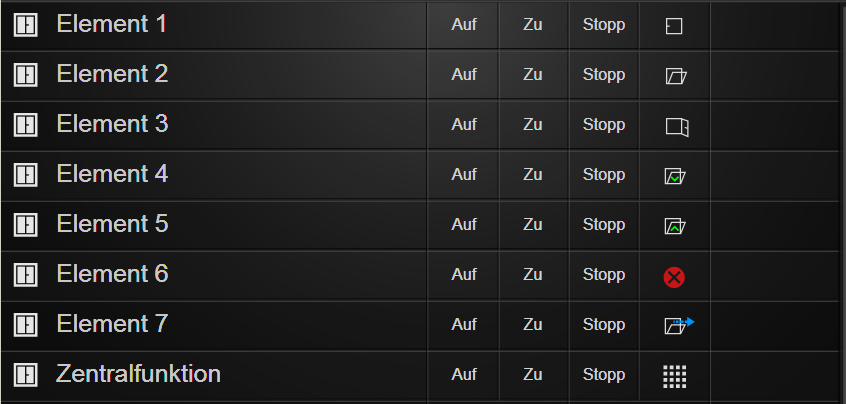

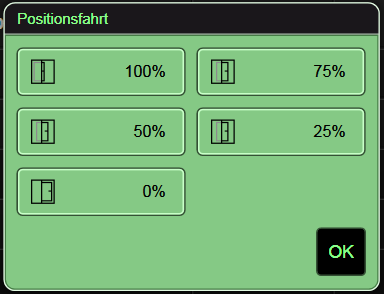

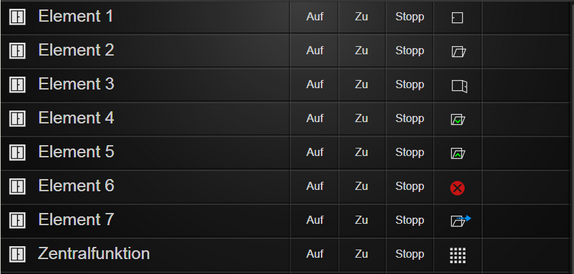

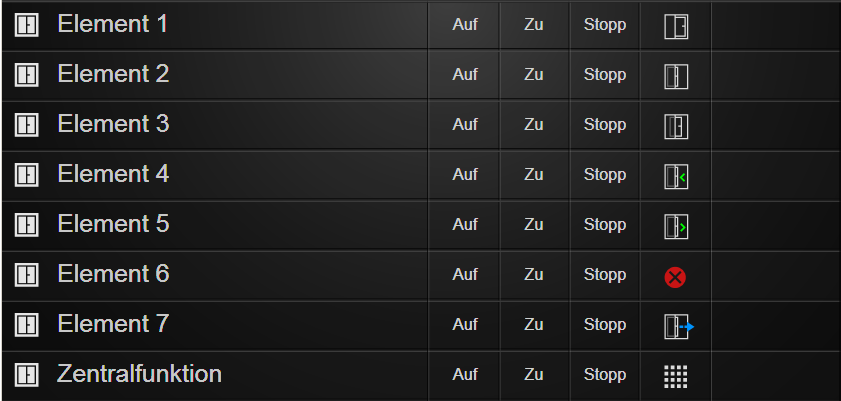

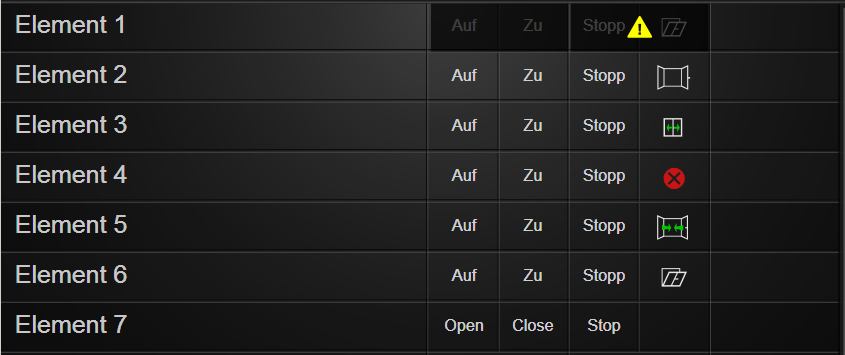

Together with the QuadClient function template "Schüco – window/slider element", current system statuses for an element can be displayed within the Gira QuadClient and movement commands (open/close, stop and position) can be triggered.

The following communication objects of the KNX gateway are evaluated by the logic node:

• Report status (4 bytes)
• Report event (2 bytes)

The logic node provides the following information at the outputs:

• Element status (1 byte)
• QuadClient element status (1 byte)
• Event active (1 bit)
• Event type (1 byte)
• Event number (1 byte)
• Status as text in hexadecimal representation
• Event as text in hexadecimal representation

Please note: Overall functionality depends greatly on the configuration of the KNX gateway.

The logic note can only be used to evaluate slider elements comprising one element or window elements.

Detailed information on the KNX gateway and the automation manager can be obtained from Schüco.
